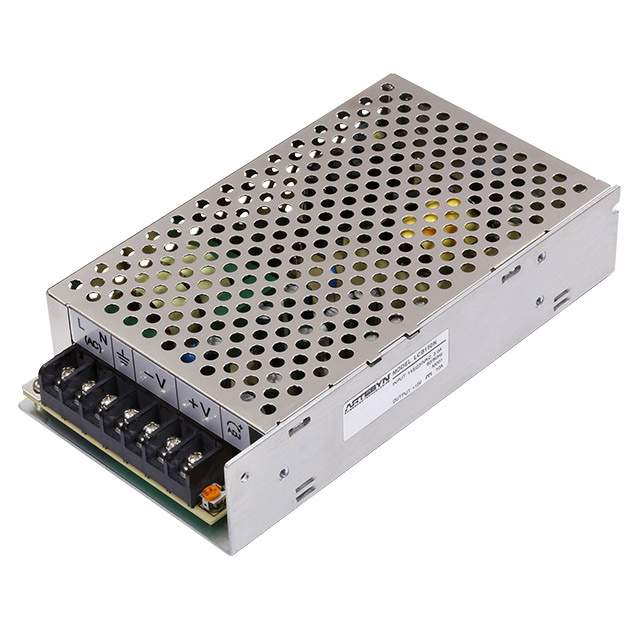

ARTESYN EMBEDDED TECHNOLOGIES LCB150E AC-DC Enclosed Power Supply, Adjustable, Fixed, 1Outputs, 88V, 264V, 90W, 5V
With this AC to DC power supply from Artesyn Embedded Power your electronic device will be able to operate by using direct current instead of alternating current. It has a voltage of 5 V and maximum output power of 90 W. This part"s single output can handle a current up to 18 A. This part has a temperature range of -25 °C to 70 °C.
得捷:
AC/DC CONVERTER 5V 150W
艾睿:
With this LCB150E AC to DC power supply from Artesyn Embedded Power your electronic device will be able to operate by using direct current instead of alternating current. It has a voltage of 5 V and maximum output power of 90 W. This part&s;s single output can handle a current up to 18 A. This part has a temperature range of -25 °C to 70 °C.
安富利:
5V @ 90W, 3.86" X 1.5" X 7"
Verical:
AC/DC Power Supply Single-OUT 5V 18A 90W 7-Pin
Newark:
# ARTESYN EMBEDDED TECHNOLOGIES LCB150E AC/DC Enclosed Power Supply, Adjustable, Fixed, 1 Outputs, 88 V, 264 V, 90 W, 5 V
额定功率 150 W
输出接口数 1
输出电压 5 V
输出电流 18 A
输出功率 90 W
隔离电压 3 kV
输入电压DC Max 373 V
输入电压DC Min 248 V
输入电压AC Max 264 v
输入电压AC Min 88 v
输出电流Max 18 A
输入电流Min 3 A
输出功率Max 90 W
工作温度Max 70 ℃
工作温度Min -25 ℃
输入电压 90VAC ~ 264VAC
安装方式 Chassis
引脚数 7
高度 38 mm
工作温度 -25℃ ~ 70℃
产品生命周期 Obsolete
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
