LFWLT150-1002

LFWLT150-1002图片1
LFWLT150-1002图片2
LFWLT150-1002图片3

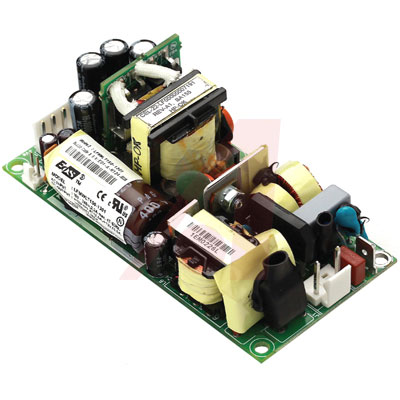

LFWLT150-1002图片4
LFWLT150-1002图片5
LFWLT150-1002概述

AC-DC Power Supply Single-OUT 15V 6.67A 150W 9Pin

The W-Series of Open Frame Power Supplies are ideal for Industrial, data networking, telecommunications, process controls, automation products, multimedia and point of sale products and much more.

**Features:**

* 150 Watt with Forced Air Cooling

* Small 2 × 4 × 1.324 Inch Form Factor

* High Efficiency >86%

* Low Conducted and Radiated Noise

* 12 V @ 0.5 A Fan Voltage Auxiliary Output

* Class 1 & 2 Products

* Light Weight

* Cover Kit Accessory Available

LFWLT150-1002中文资料参数规格
技术参数

输出接口数 1

输出电压 15 V

输出电流 6.67 A

输出功率 100 W

输出电流Max 6.67 A

输入电流Min 1.7 A

输出功率Max 150 W

工作温度Max 70 ℃

工作温度Min -20 ℃

输入电压 90VAC ~ 264VAC

封装参数

安装方式 Panel

引脚数 9

外形尺寸

高度 33.64 mm

物理参数

工作温度 -20℃ ~ 70℃

符合标准

RoHS标准 RoHS Compliant

数据手册

在线购买LFWLT150-1002
型号: LFWLT150-1002
制造商: EOS Power
描述:AC-DC Power Supply Single-OUT 15V 6.67A 150W 9Pin
