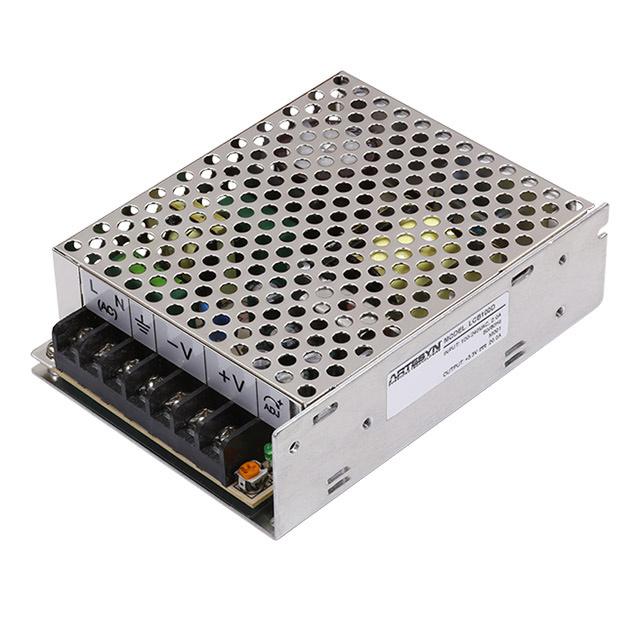

ARTESYN EMBEDDED TECHNOLOGIES LCB100W AC-DC Enclosed Power Supply, Adjustable, Fixed, 1Outputs, 88V, 264V, 110W, 48V
Ensure your electronic devices operate by using this AC to DC power supply from Artesyn Embedded Power. It has a voltage of 48 V and maximum output power of 110 W. This part"s single output can handle a current up to 2.3 A. This part has a temperature range of -25 °C to 70 °C.
得捷:
AC/DC CONVERTER 48V 100W
艾睿:
Ensure your electronic devices operate by using this LCB100W AC to DC power supply from Artesyn Embedded Power. It has a voltage of 48 V and maximum output power of 110 W. This part&s;s single output can handle a current up to 2.3 A. This part has a temperature range of -25 °C to 70 °C.
安富利:
48V @ 110W, 3.86" X 1.5" X 5.1"
Verical:
AC/DC Power Supply Single-OUT 48V 2.3A 110W 5-Pin
Newark:
# ARTESYN EMBEDDED TECHNOLOGIES LCB100W AC/DC Enclosed Power Supply, Adjustable, Fixed, 1 Outputs, 88 V, 264 V, 110 W, 48 V
额定功率 100 W
输出接口数 1
输出电压 48 V
输出电流 2.3 A
输出功率 110 W
隔离电压 3 kV
输入电压DC Max 373 V
输入电压DC Min 125 V
输入电压AC Max 264 v
输入电压AC Min 88 v
输出电流Max 2.3 A
输入电流Min 2.5 A
输出功率Max 110 W
工作温度Max 70 ℃
工作温度Min -25 ℃
输入电压 88VAC ~ 264VAC
安装方式 Chassis
引脚数 5
高度 37.5 mm
工作温度 -25℃ ~ 70℃
产品生命周期 Obsolete
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
