LPQ352-CEF

ARTESYN EMBEDDED TECHNOLOGIES  LPQ352-CEF  交流/直流封闭式电源, 有源PFC, 可调, 固定, 5V, 70A, 12V, 12A, -12V, 6A, 24V, 6A

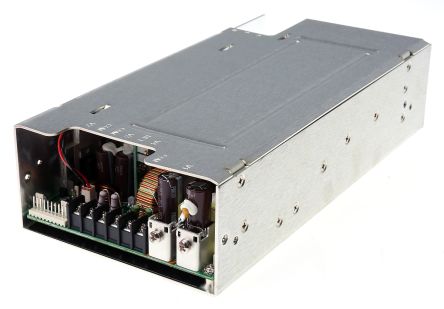

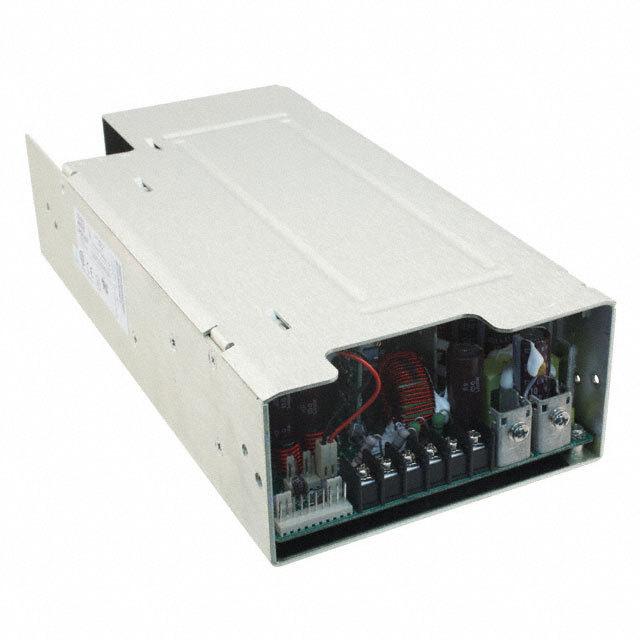

Astec 350W Switch Mode Quad Output AC/DC Power Supply - LPQ 350 Series

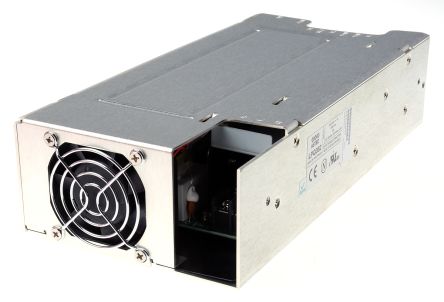

350W switch mode AC/DC power supply with quad output. The 1st and 4th output of this AC power adapter have remote sensing and there are also two supervisory outputs of 5V and 12V. The 4th output of this AC/DC power supply is floating and adjustable. This AC/DC power supply has active power factor correction, a built-in EMI filter and is supplied with an end mounted fan.

Remote sense on 1st and 4th output

Single wire current sharing

Power fail and remote inhibit

Built-in EMI filter

Efficiency of 75% typical at full load

Overvoltage, overload and thermal overload protection

Adjustable floating 4th output

2 supervisory outputs of 5V and 12V

Safety ground leakage current of <0.5mA @ 50/60 Hz, 264 VAC input

Active power factor correction compliance to IEC EN6100-3-2

EMC compliance to FCC Class B conducted and radiated, CISPR 22 Class B conducted and radiated, EN55022 Class B conducted and radiated, VDE 0878 PT3 Class B conducted and radiated

### 注

Derating from 50 to 70°C is 2.5% per °C.

Suitable connecting kit for this AC/DC power supply: stock number 151-638

### 认可

VDE; UL Recognised; CSA Certified; NEMKO; CB; BABT

### 标准

VDE: 0805/EN60950 IEC950, UL1950, CSA 22.2-234 level 5, NEMKO: EN 60950/EMKO-TUE 74 sec 203, BABT: EN60950/BS7002
