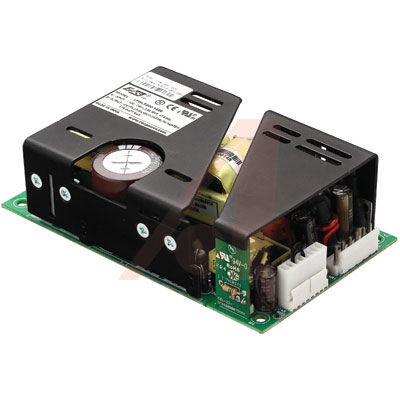

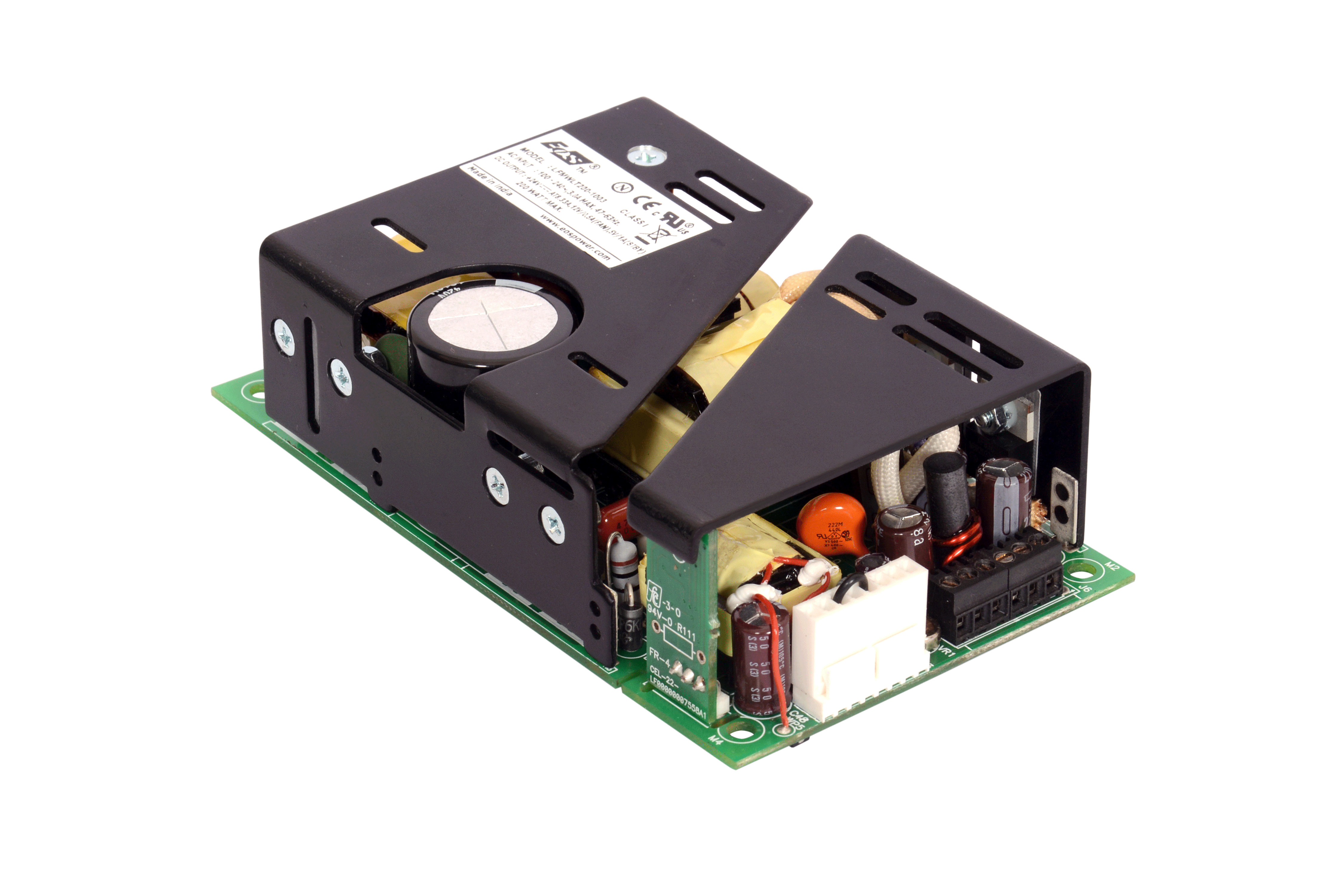

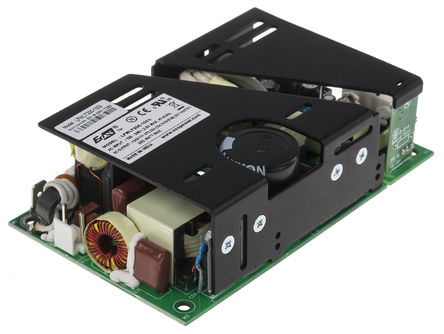

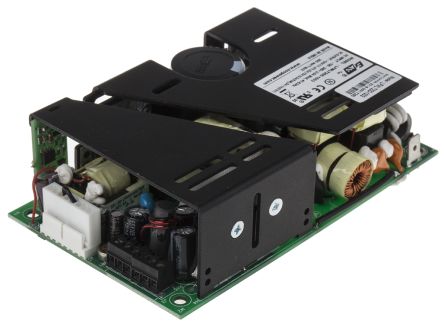

200W Convection Universal Input, 3x5inch WLT200 Series
The 200W open frame convection power supply has universal input and is a compact 3x5 inch in size. Suitable applications include industrial, data networking, telecommunications, process controls and automation products. Class 1 and Class 2 versions available.
200 W with forced air cooling
Compact 3 x 5 inch package
High efficiency: > 88%
EMC meets EN5022 class B, FCC part 15 Class B
Harmonic correction to EN61000-3-2 Class D
Overvoltage, power limit, and short circuit protection
Free air convection for 160 W 5V = 125 W, and 200 W 5V = 175 W with 300LFM airflow
12V fan output and 5V standby output
Adjustable output voltage
Remote sensing
J2 DC output connector has screw type terminal
Optional cover available, see stock number 700-2422
### 注
Class 2 versions have part numbers suffixed by "-2", others are all Class 1
MTBF to Bellcore TR-322.
Derate above 51°C to 70° linearly to 50% load
Output current and power rating stated for free air convection.
### 认可
UL, c-UL
### 标准
EN60950
