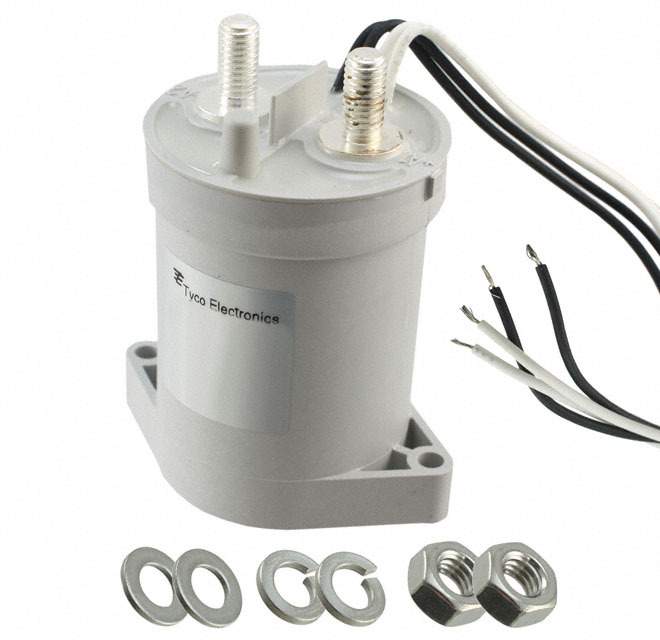

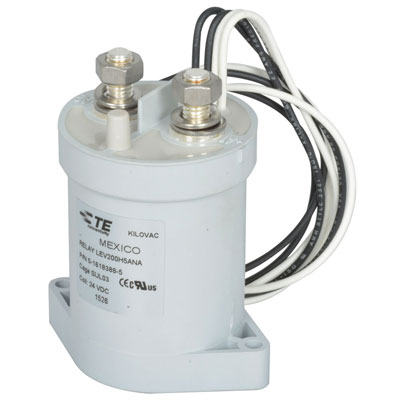

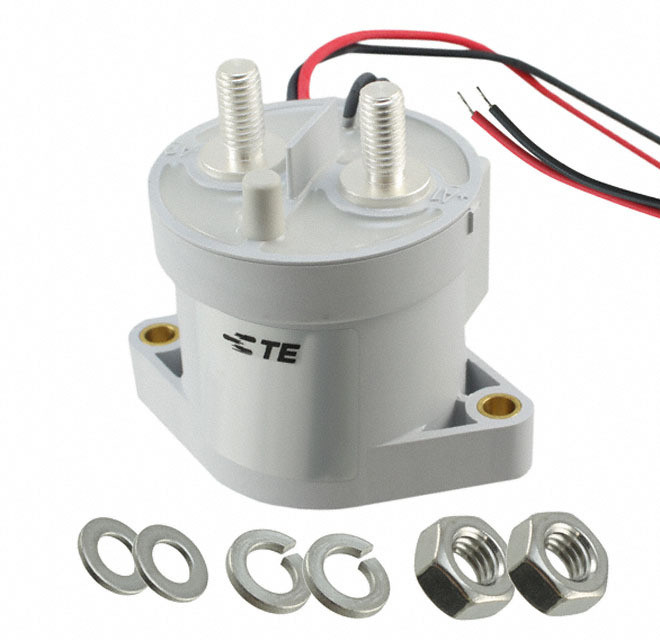

LEV200H5ANA

金属触芯, 面板安装, 900 VDC, SPST-常开 单刀单掷-双动闭合SPST-DM, 1位

The is a 1-pole Contactor with DC coil, KILOVAC LEV200 series. 1 form-A SPST-NO contact configuration. Normally open with auxiliary contacts. Stripped wire termination. Bottom mount and male 10mm x M8 threaded terminals. Designed to be the lowest cost sealed contactor in the industry with its current rating 500+A carry, 2000A interrupt at 320VDC. Hermetically sealed intrinsically safe, operates in explosive/harsh environments with no oxidation or contamination of coils or contacts, including long periods of non-operation. Typical applications include battery switching and backup, DC voltage power control, circuit protection and safety. Designed and built in accordance to AIAG QS9000.
