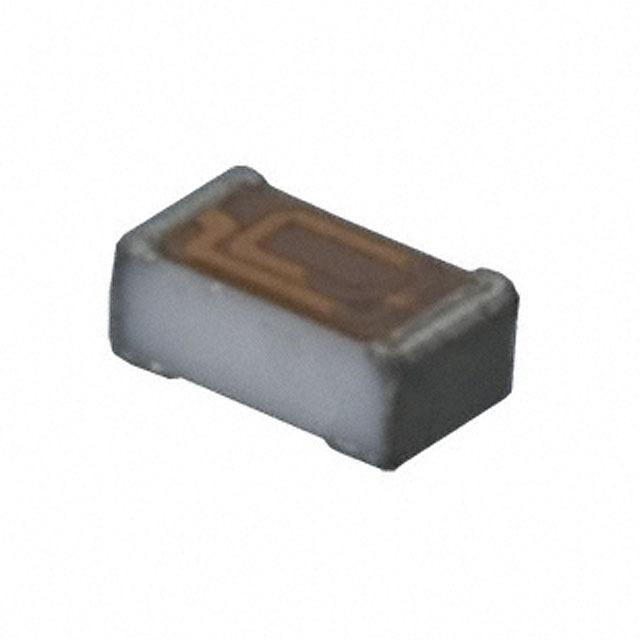

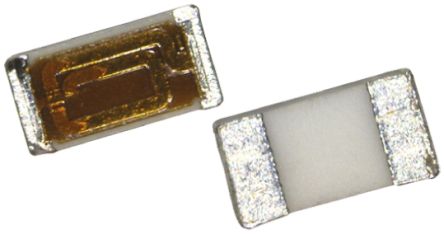

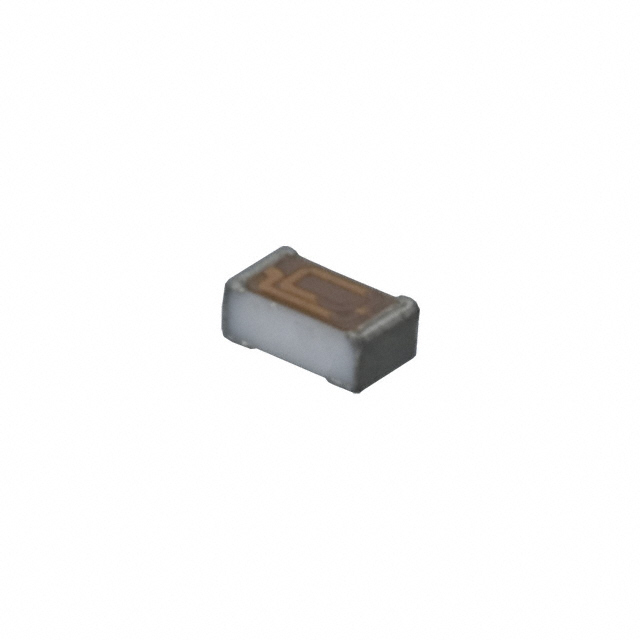

LQP15MN2N4B02D

0402

固定器

立创商城:
2.4nH ±0.1nH 300mΩ

得捷:
FIXED IND 2.4NH 220MA 300MOHM SM

欧时:
Murata LQP15M 系列 LQP15MN2N4B02D 2.4 nH ±0.1nH 铁氧体 多层贴片式电感器, 0402 1005M封装, SRF: 6GHz

艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this rf chip LQP15MN2N4B02D surface mount inductor from Murata is perfect for you! This SMD inductor has an operating temperature range of -40 °C to 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 220m A with a maximum resistance of 300m Ohm. It has an inductance of 2.4n H. This product is 1.1 mm long, 0.45 mm tall and 0.6 mm deep. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 6G Hz. This device utilizes thin film technology.

安富利:
Ind RF Chip Thin Film 2.4nH 0.1nH 500MHz 13Q-Factor 220mA 0402 Paper T/R

Chip1Stop:
Inductor RF Chip Thin Film 2.4nH 0.1nH 500MHz 13Q-Factor 220mA 300mOhm DCR 0402 T/R

Verical:
Inductor RF Chip Unshielded Thin Film 0.0024uH 0.1nH 500MHz 13Q-Factor Non Magnetic 0.22A 0.3Ohm DCR 0402 T/R
