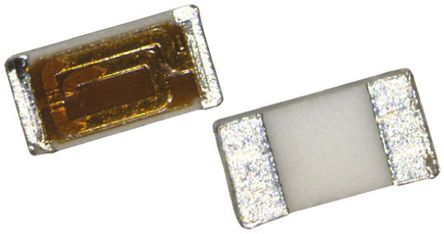

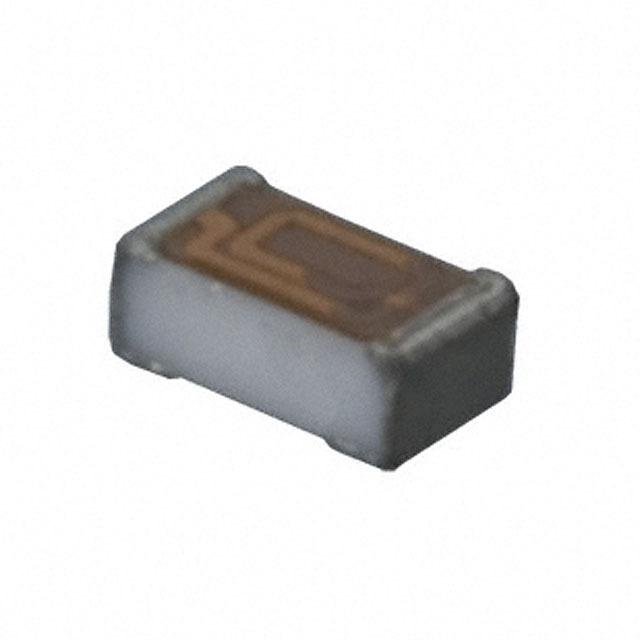

LQP15MN2N7B02D

LQP15M 系列 0402 2.7 nH 220 mA SMD 高频 贴片电感

固定器

立创商城:
2.7nH ±0.1nH 300mΩ

得捷:
FIXED IND 2.7NH 220MA 300MOHM SM

欧时:
Murata LQP15M 系列 2.7 nH 绕线贴片电感器 LQP15MN2N7B02D, ±0.1nH容差, 220mA Idc Q:13

艾睿:
This rf chip LQP15MN2N7B02D surface mount inductor from Murata is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 6G Hz. This product is 1.1 mm long, 0.45 mm tall and 0.6 mm deep. This SMD inductor has a maximum DC current of 220m A with a maximum resistance of 300m Ohm. This device is made with thin film technology. It has an inductance of 2.7n H.

安富利:
Ind RF Chip Thin Film 2.7nH 0.1nH 500MHz 13Q-Factor 220mA 0402 Paper T/R

Chip1Stop:
Inductor RF Chip Thin Film 2.7nH 0.1nH 500MHz 13Q-Factor 220mA 300mOhm DCR 0402 T/R

Verical:
Inductor RF Chip Unshielded Thin Film 0.0027uH 0.1nH 500MHz 13Q-Factor Non Magnetic 0.22A 0.3Ohm DCR 0402 T/R

儒卓力:
**LQP15MN 2,7nH 220mA 0,1nH TFT **

Win Source:
2.7nH Unshielded Thin Film Inductor 220mA 300 mOhm Max 0402 1005 Metric
