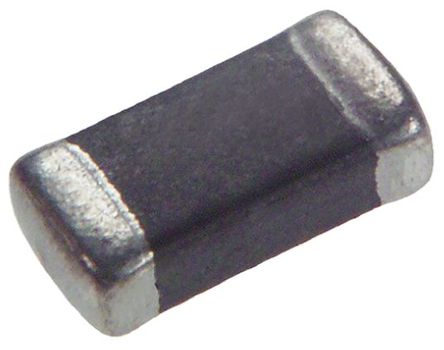

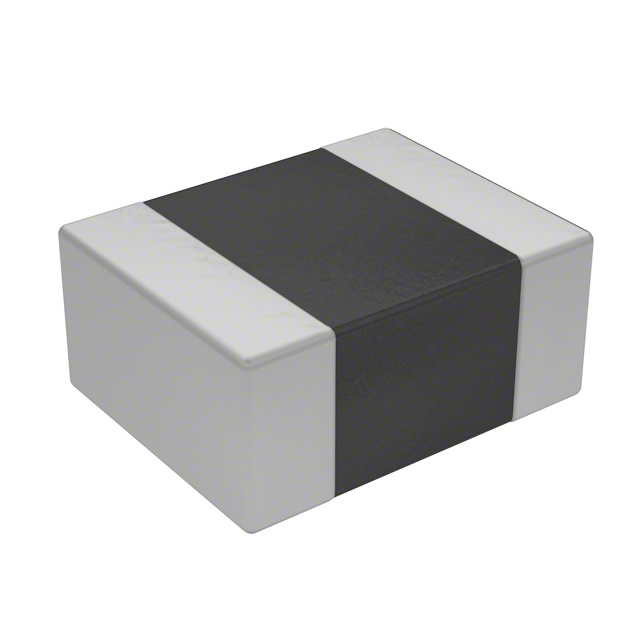

LQM 系列 0806 3.3 uH ±30 % 容差 1.2 A 多层 功率电感
固定器
得捷:
FIXED IND 3.3UH 1.2A 150MOHM SMD
立创商城:
3.3uH ±30% 150mΩ
欧时:
Murata LQW2MP_G0 系列 LQM2MPN3R3NG0L 3.3 μH ±30% 铁氧体 多层贴片式电感器, 0806封装, SRF: 30MHz 1.2A dc
艾睿:
An ideal space-saving electronic component is this power chip LQM2MPN3R3NG0L surface mount inductor from Murata. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 2.15 mm long, 1 mm tall and 1.75 mm deep. This SMD inductor has a maximum DC current of 1.2 A with a maximum resistance of 150m Ohm. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 30M Hz. It has an inductance of 3.3u H. This device is made with multi-layer technology.
安富利:
Ind Power Chip Shielded Multi-Layer 3.3uH 30% 1MHz Ferrite 1.2A 0806 Embossed T/R
Chip1Stop:
Ind Power Chip Shielded Multi-Layer 3.3uH 30% 1MHz Ferrite 1.2A 0806 Embossed T/R
Verical:
Inductor Power Chip Shielded Multi-Layer 3.3uH 30% 1MHz Ferrite 1.2A 0.15Ohm DCR 0806 T/R
Win Source:
3.3μH Shielded Multilayer Inductor 1.2A 150 mOhm Max 0805 2012 Metric
额定电流 1.2 A
容差 ±30 %
电感 3.3 µH
自谐频率 30 MHz
产品系列 LQM
电感公差 ±30 %
测试频率 1 MHz
电阻DC) ≤150 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 150 mΩ
安装方式 Surface Mount
封装 0806
长度 2 mm
宽度 1.6 mm
高度 1 mm
封装 0806
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 3000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
