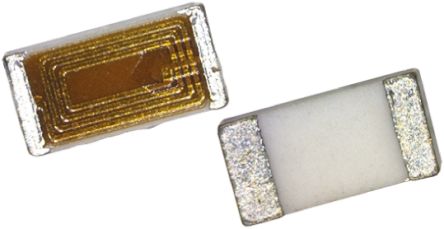

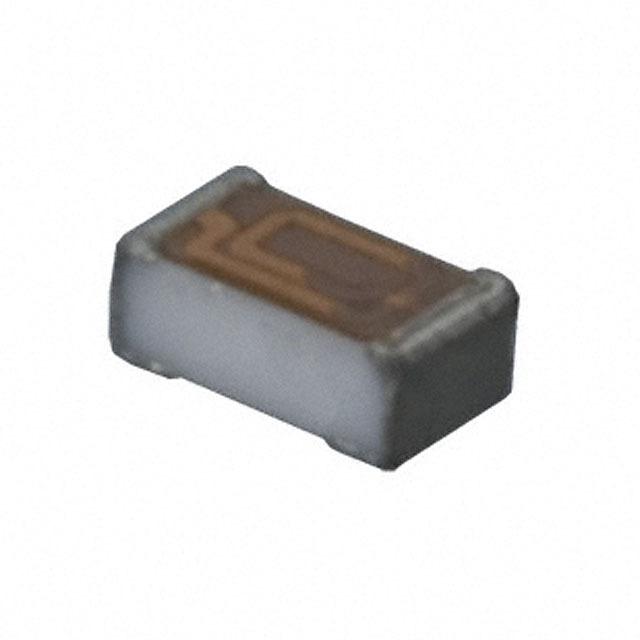

LQP18MN6N8C02D

0603

0603 - LQP18F 系列多层片式器

LQP18F 超小型薄型片式电感器，带薄膜技术结构。 提供各种电感值，可实现无调谐装配。

高频率范围时的高 Q

由于低杂散电容和窄电感分布产生的高自谐振频率可在高频电路（例如电信设备）中提供稳定的电感

### 应用：-

移动电话的高频率电路，如 PA、ANT、VCO、SAW 等。

移动电话

“蓝牙”

W-LAN

一般高频电路

立创商城:
6.8nH ±0.2nH 700mΩ

欧时:
Murata LQW18F 系列 LQP18MN6N8C02D 6.8 nH ±0.2nH 铁氧体 多层贴片式电感器, 0603 1608M封装, SRF: 4.3GHz

得捷:
FIXED IND 6.8NH 200MA 700MOHM SM

贸泽:
Fixed Inductors 6.8nH 0603

艾睿:
This rf chip LQP18MN6N8C02D surface mount inductor from Murata is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has an inductance of 6.8n H. This SMD inductor has a maximum DC current of 200m A with a maximum resistance of 700m Ohm. This product is 1.75 mm long, 0.6 mm tall and 0.95 mm deep. This device is made with thin film technology. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 4.3G Hz.

安富利:
Ind RF Chip Thin Film 6.8nH 0.2nH 500MHz 17Q-Factor 200mA 0603 Paper T/R

Chip1Stop:
Inductor RF Chip Thin Film 6.8nH 0.2nH 500MHz 17Q-Factor 200mA 700mOhm DCR 0603 T/R

Verical:
Inductor RF Chip Unshielded Thin Film 6.8nH 0.2nH 500MHz 17Q-Factor Ceramic 200mA 700mOhm DCR 0603 T/R

儒卓力:
**LQP18MN 6,8nH 200mA +-0,2nH TFT **

Win Source:
FIXED IND 6.8NH 200MA 700 MOHM
