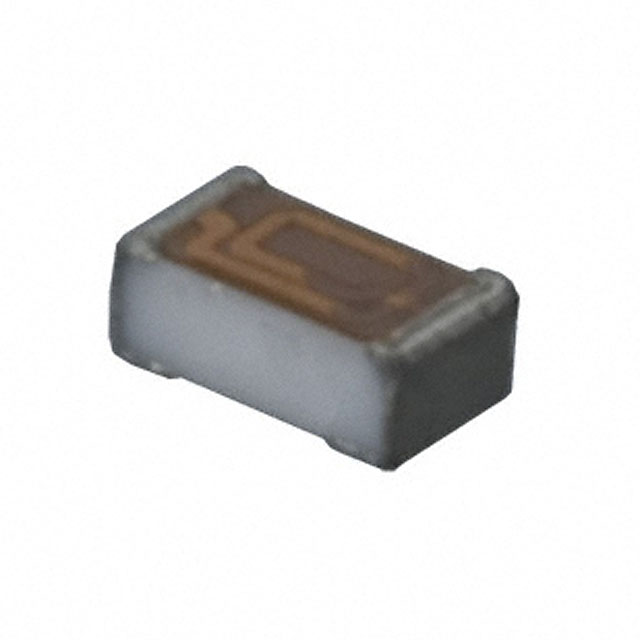

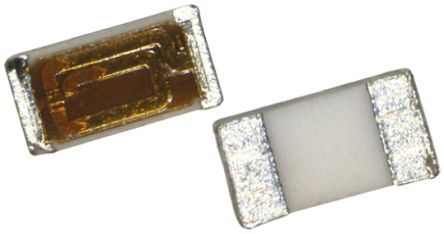

LQP15MN1N5B02D

LQP15M 系列 0402 1.5 nH 280 mA SMD 高频 贴片电感

Murata 0402 LQP15M 系列薄膜器

LQP15M 超小型薄型片式电感器，带薄膜技术结构。 提供各种电感值，可实现无调谐装配。

高频率范围时的高 Q

由于低杂散电容和窄电感分布产生的高自谐振频率可在高频电路（例如电信设备）中提供稳定的电感

### 应用：-

移动电话的高频率电路，如 PA、ANT、VCO、SAW 等。

移动电话

“蓝牙”

W-LAN

一般高频电路

立创商城:
1.5nH ±0.1nH 200mΩ

得捷:
FIXED IND 1.5NH 280MA 200MOHM SM

欧时:
Murata LQP15M 系列 LQP15MN1N5B02D 1.5 nH ±0.1nH 铁氧体 多层贴片式电感器, 0402封装, SRF: 6GHz Q: 13

艾睿:
Make any circuit look clean and compact using this rf chip LQP15MN1N5B02D surface mount inductor from Murata. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has an inductance of 1.5n H. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 6G Hz. This device is made with thin film technology. This product is 1.1 mm long, 0.45 mm tall and 0.6 mm deep. This SMD inductor has a maximum DC current of 280m A with a maximum resistance of 200m Ohm.

安富利:
Ind RF Chip Thin Film 1.5nH 0.1nH 500MHz 13Q-Factor 280mA 0402 Paper T/R

Verical:
Inductor RF Chip Unshielded Thin Film 0.0015uH 0.1nH 500MHz 13Q-Factor Non Magnetic 0.28A 0.2Ohm DCR 0402 T/R

儒卓力:
**LQP15MN 1,5nH 280mA 0,1nH TFT **

Win Source:
FIXED IND 1.5NH 280MA 200 MOHM
