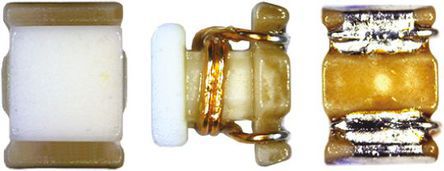

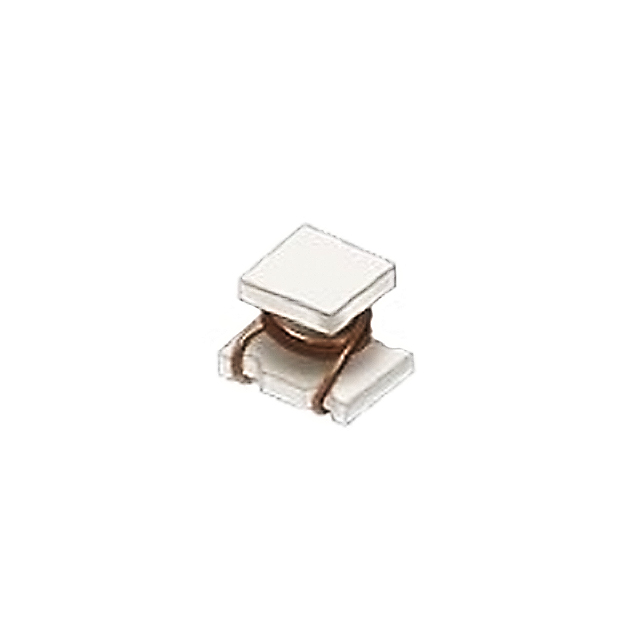

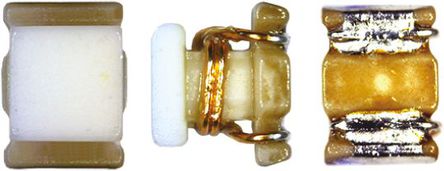

Murata 0805 LQW2BH 系列线绕电感器工作温度:-40 → +85°C 尺寸:2.0 x 1.5 x 1.75 mm 封装类型:0805 ### 表面安装 0805 电感器(扼流圈)
Murata 0805 LQW2BH 系列线绕器
工作温度:-40 → +85°C
尺寸:2.0 x 1.5 x 1.75 mm
封装类型:0805
立创商城:
68nH ±5% 230mΩ
得捷:
FIXED IND 68NH 460MA 230MOHM SMD
欧时:
### Murata 0805 LQW2BH 系列线绕电感器工作温度:-40 → +85°C 尺寸:2.0 x 1.5 x 1.75 mm 封装类型:0805
贸泽:
固定电感器 0805 68nH +/-5% Chip Inductor
艾睿:
This rf chip LQW2BHN68NJ03L surface mount inductor from Murata is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has a tolerance of 5%. This device utilizes wirewound technology. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 1.2G Hz. This product is 2.2 mm long, 1.78 mm tall and 1.7 mm deep. It has an inductance of 68n H. This SMD inductor has a maximum DC current of 460m A with a maximum resistance of 230m Ohm.
安富利:
Ind RF Chip Wirewound 68nH 5% 100MHz 40Q-Factor Air 460mA 0805 Embossed T/R
Verical:
Inductor RF Chip Unshielded Wirewound 0.068uH 5% 100MHz 40Q-Factor Non Magnetic 0.46A 0.23Ohm DCR 0805 T/R
儒卓力:
**LQW2BH 0,068uH 460mA 5% WWT **
Win Source:
68nH Unshielded Wirewound Inductor 460mA 230 mOhm Max 0805 2012 Metric
额定电流 460 mA
容差 ±5 %
电感 68 nH
自谐频率 1.2 GHz
产品系列 LQW
电感公差 ±5 %
测试频率 100 MHz
电阻DC) ≤230 mΩ
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 230 mΩ
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.5 mm
高度 1.7 mm
封装公制 2012
封装 0805
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
