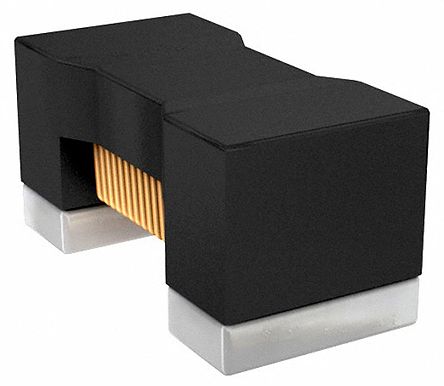

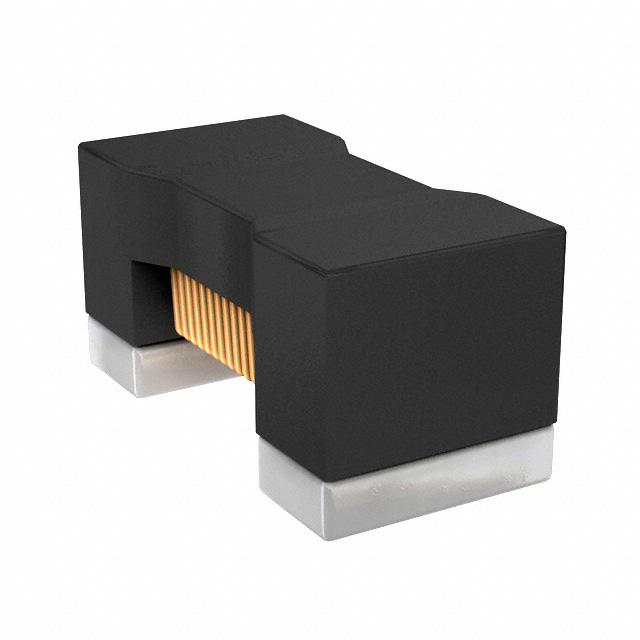

LQW18AN6N8C00D

Murata 0603 LQW18AN 系列线绕电感器高质量线圈电感器，设计用于 VHF 和 UHF 应用。 高谐振频率。 低容差电感值。 带有后缀 "10D" 的型号具有较低直流电阻值。 **应用：**高频率电路，用于无线电信设备：例如蓝牙、GSM、W-LAN。 ### SMT 0603 电感器（扼流圈）

固定器

得捷:
FIXED IND 6.8NH 750MA 82MOHM SMD

欧时:
### Murata 0603 LQW18AN 系列线绕电感器高质量线圈电感器，设计用于 VHF 和 UHF 应用。 高谐振频率。 低容差电感值。 带有后缀 "10D" 的型号具有较低直流电阻值。 **应用：**高频率电路，用于无线电信设备：例如蓝牙、GSM、W-LAN。 ![http://china.rs-online.com/largeimages/L0109217-10.jpg]http://china.rs-online.com/largeimages/L0109217-10.jpg ### SMT 0603 电感器（扼流圈）

立创商城:
6.8nH ±0.2nH 82mΩ

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this rf chip LQW18AN6N8C00D surface mount inductor from Murata to save valuable space. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 6G Hz. This SMD inductor has a maximum DC current of 750m A with a maximum resistance of 82m Ohm. This device utilizes wirewound technology. It has an inductance of 6.8n H. This product is 1.8 mm long, 1 mm tall and 1 mm deep.

安富利:
Ind RF Chip Wirewound 6.8nH 0.2nH 100MHz 35Q-Factor 750mA 0603 Paper T/R

Chip1Stop:
Inductor RF Chip Wirewound 6.8nH 0.2nH 100MHz 35Q-Factor 750mA 82mOhm DCR 0603 T/R

TME:

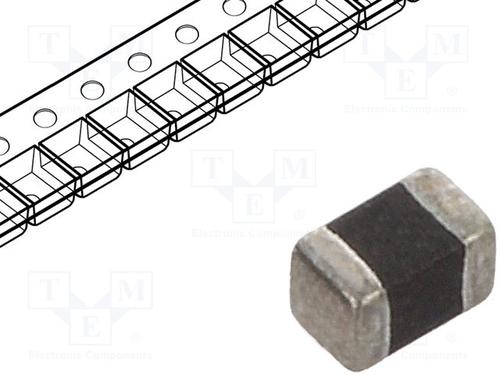

Inductor: wire; SMD; 0603; 6.8nH; 750mA; 0.082Ω; ftest:100MHz; Q:35

Verical:
Inductor RF Chip Unshielded Wirewound 0.0068uH 0.2nH 100MHz 35Q-Factor Non Magnetic 0.75A 0.082Ohm DCR 0603 T/R

儒卓力:
**LQW18AN 6,8nH 750mA +-0,2nH WWT **

Win Source:
FIXED IND 6.8NH 750MA 82 MOHM
