0603
固定器
欧时:

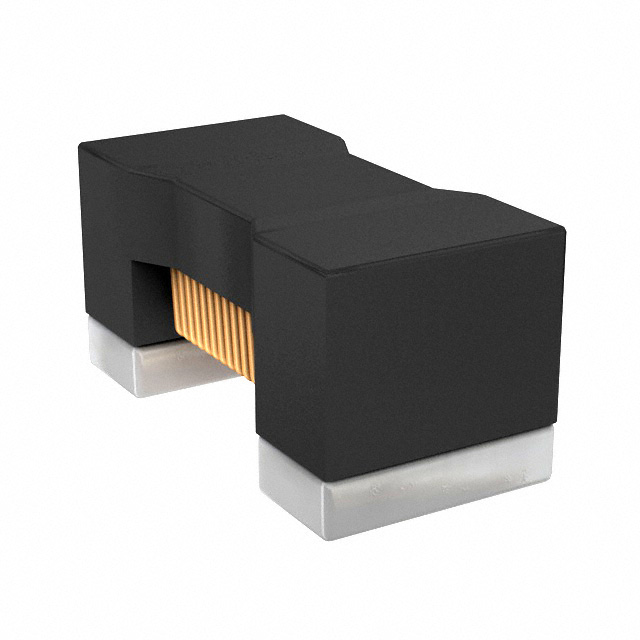

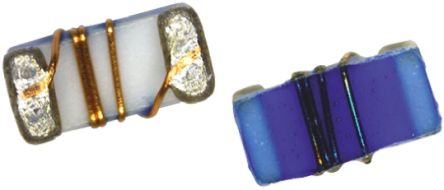

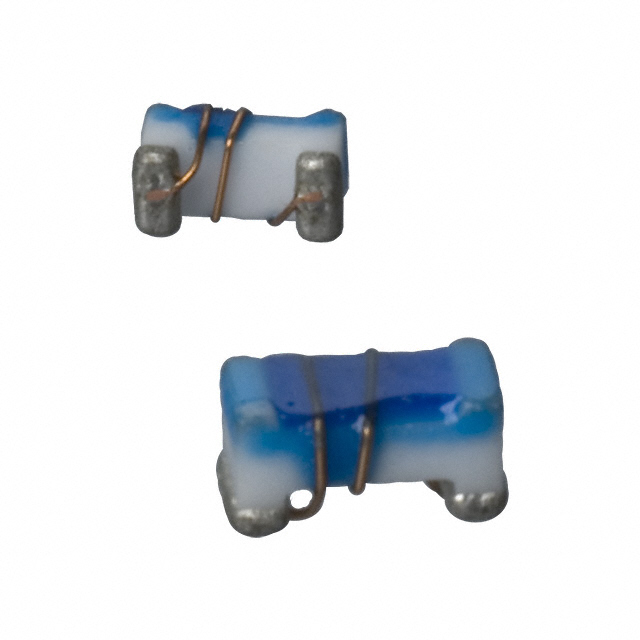

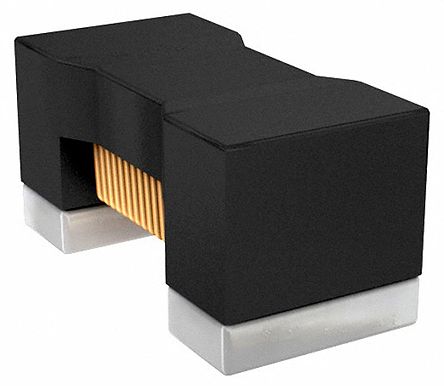

Murata LQW18A 系列 铁氧体芯材 8.7 nH 绕线贴片电感器 LQW18AN8N7D00D, ±0.5nH容差, 650mA Idc Q:35
得捷:
FIXED IND 8.7NH 650MA 110MOHM SM
立创商城:
8.7nH ±0.5nH 110mΩ
艾睿:
Make any circuit look clean and compact using this rf chip LQW18AN8N7D00D surface mount inductor from Murata. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This SMD inductor has a maximum DC current of 650m A with a maximum resistance of 110m Ohm. This device is made with wirewound technology. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 6G Hz. This product is 1.8 mm long, 1 mm tall and 1 mm deep. It has an inductance of 8.7n H.
安富利:
Ind RF Chip Wirewound 8.7nH 0.5nH 100MHz 35Q-Factor 650mA 0603 Paper T/R
富昌:
LQW18 A 系列 0603 8.7 nH 650 mA SMD 线绕贴片电感
Chip1Stop:
Inductor RF Chip Wirewound 8.7nH 0.5nH 100MHz 35Q-Factor 650mA 110mOhm DCR 0603 T/R
Verical:
Inductor RF Chip Unshielded Wirewound 0.0087uH 0.5nH 100MHz 35Q-Factor Non Magnetic 0.65A 0.11Ohm DCR 0603 T/R
儒卓力:
**LQW18AN 8,7nH 650mA +-0,5nH WWT **
Win Source:
8.7nH Unshielded Wirewound Inductor 650mA 110 mOhm Max 0603 1608 Metric
额定电流 650 mA
电感 8.7 nH
自谐频率 6 GHz
产品系列 LQW
屏蔽 No
电感公差 ±0.5 nH
测试频率 100 MHz
电阻DC) ≤110 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 110 mΩ
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
重量 0.0027 g
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
