LQH32CN2R2M53L

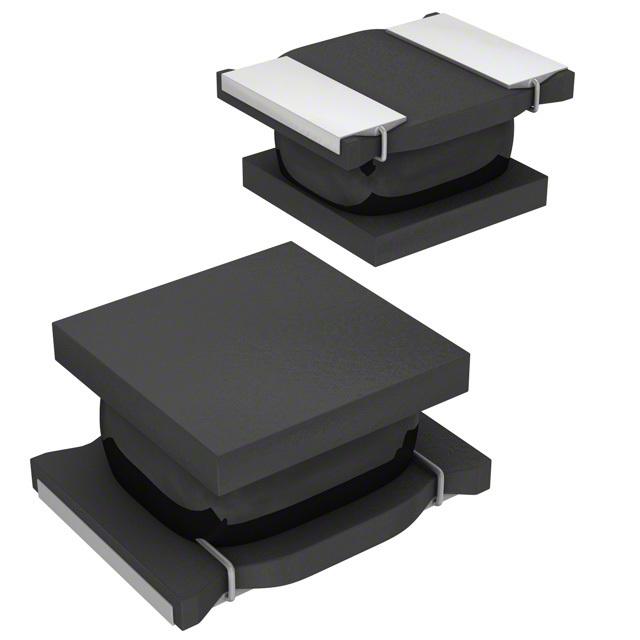

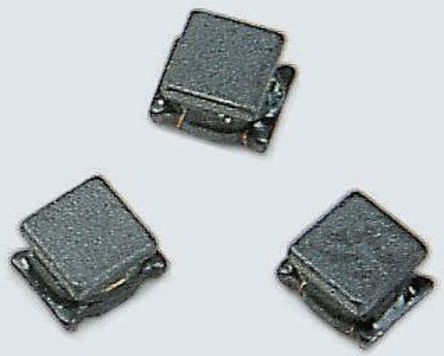

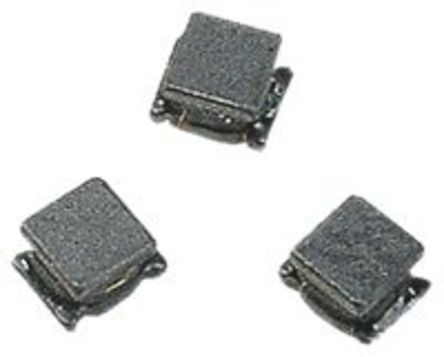

Murata 1210 LQH32CN 系列线绕电感器线圈电感器，带铁氧体磁芯。 高质量和低直流电阻。 低电压降和高温度稳定性。 **应用：**滤波电感器，适用于开关模式电源。 ### 表面安装 1210 电感器（扼流圈）

固定器

得捷:
FIXED IND 2.2UH 790MA 126.1 MOHM

立创商城:
2.2uH ±20% 790mA 126.1mΩ

欧时:
Murata LQH32CN 系列 2.2 μH 绕线贴片电感器 LQH32CN2R2M53L, ±20%容差, 790mA Idc, 97mΩ最大直流电阻

贸泽:
Fixed Inductors 2.2uH 20%

艾睿:

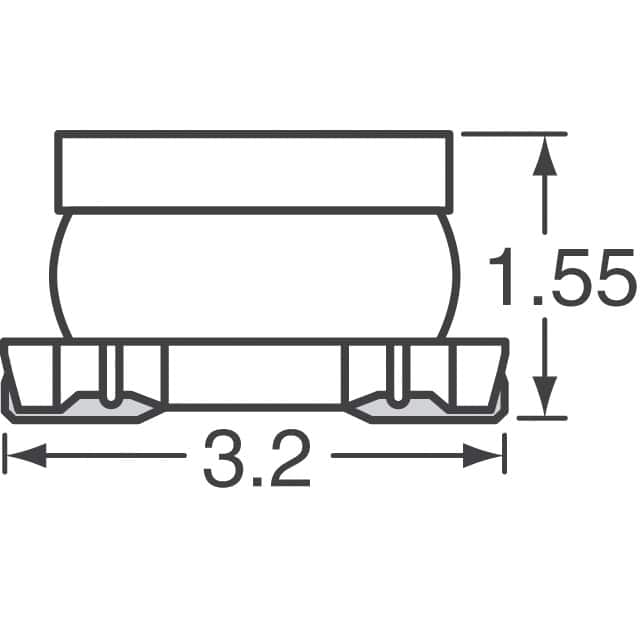

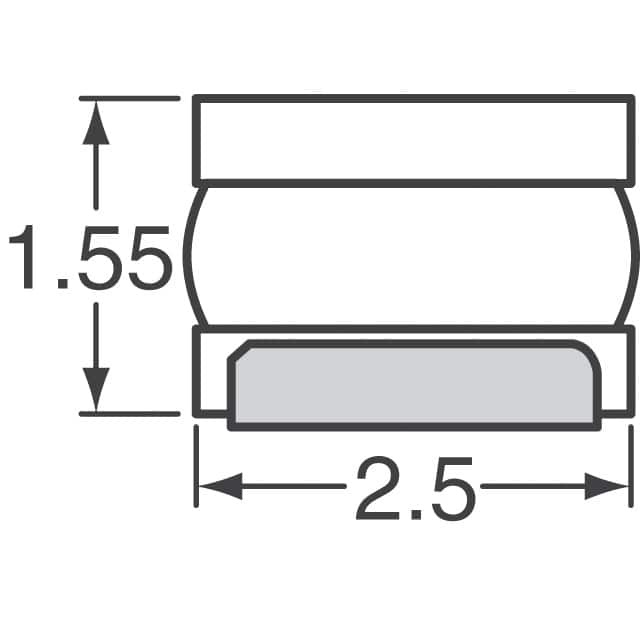

An ideal space-saving electronic component is this power chip LQH32CN2R2M53L surface mount inductor from Murata. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has an inductance of 2.2u H. It has a tolerance of 20%. This product is 3.5 mm long, 1.7 mm tall and 2.7 mm deep. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 790m A with a maximum resistance of 126.1m Ohm. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 64M Hz.

安富利:
Ind Power Chip Unshielded Wirewound 2.2uH 20% 1MHz Ferrite 790mA 1210 Embossed T/R

Chip1Stop:
Inductor Power Chip Unshielded Wirewound 2.2uH 20% 1MHz Ferrite 790mA 126.1mOhm DCR 1210 Embossed T/R

Verical:
Inductor Power Chip Unshielded Wirewound 2.2uH 20% 1MHz Ferrite 0.79A 0.1261Ohm DCR 1210 T/R

儒卓力:
**LQH32CN 2,2uH 790mA 20% WWT **

Win Source:
2.2μH Unshielded Wirewound Inductor 790mA 126.1 mOhm Max 1210 3225 Metric
