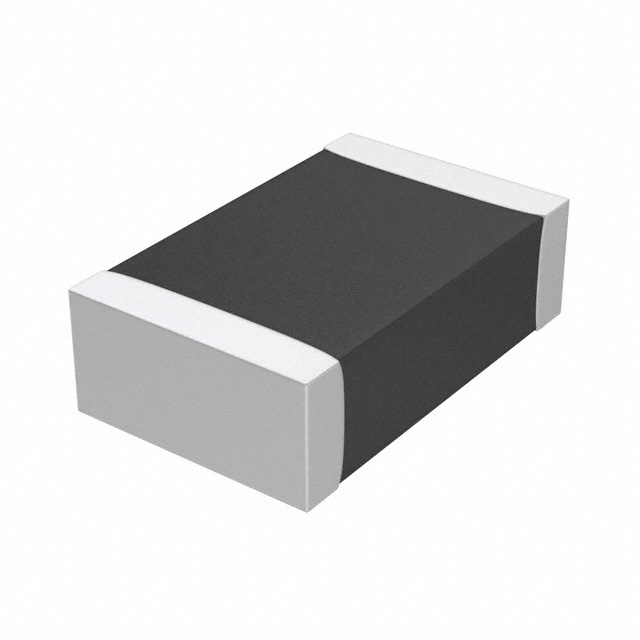

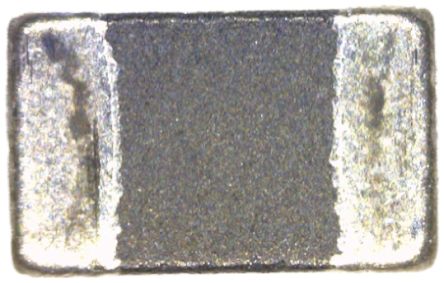

Murata 0805 LQW21F 系列磁性屏蔽多层片式扼流圈LQM21 系列的磁性屏蔽片式电感器设计,采用 Murata 的原始多层处理技术和磁性材料。 2.0x1.25mm 的微型尺寸使电气设备的设计更紧凑。 ### 表面安装 0805 电感器(扼流圈)
固定器
立创商城:
4.7uH ±20% 120mA 234mΩ
得捷:
FIXED IND 4.7UH 120MA 234MOHM SM
欧时:
Murata LQM21F 系列 LQM21FN4R7M80L 4.7 μH ±20% 铁氧体 多层贴片式电感器, 0805封装, SRF: 25MHz 120mA dc
艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power chip LQM21FN4R7M80L surface mount inductor from Murata to save valuable space. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This product is 2.2 mm long, 1.45 mm tall and 1.45 mm deep. This SMD inductor has a maximum DC current of 120m A with a maximum resistance of 234m Ohm. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 25M Hz. This device is made with multi-layer technology. It has an inductance of 4.7u H. It has a tolerance of 20%.
安富利:
Ind Power Chip Shielded Multi-Layer 4.7uH 20% 1MHz Ferrite 120mA 0805 Embossed T/R
Verical:
Inductor Power Chip Shielded Multi-Layer 4.7uH 20% 1MHz Ferrite 0.12A 0.234Ohm DCR 0805 T/R
儒卓力:
**LQM21FN 4,7uH 120mA 20% MLT **
额定电流 120 mA
容差 ±20 %
电感 4.7 µH
自谐频率 25 MHz
产品系列 LQM
电感公差 ±20 %
测试频率 1 MHz
电阻DC) ≤234 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 234 mΩ
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 1.25 mm
封装公制 2012
封装 0805
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 3000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
