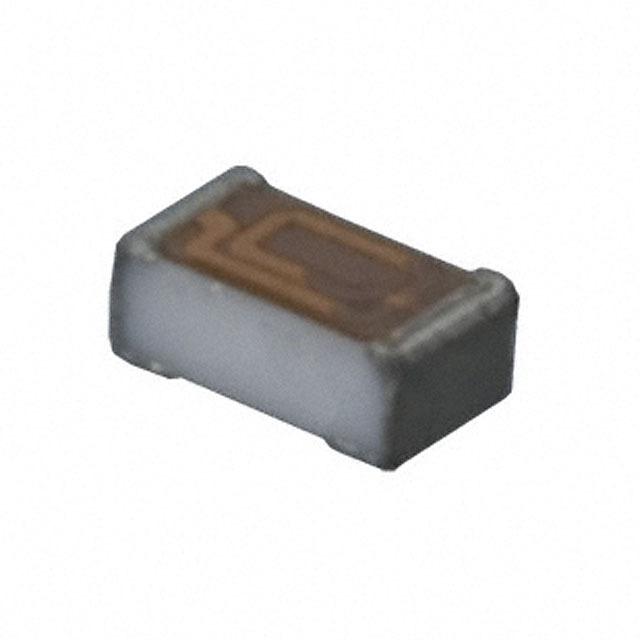

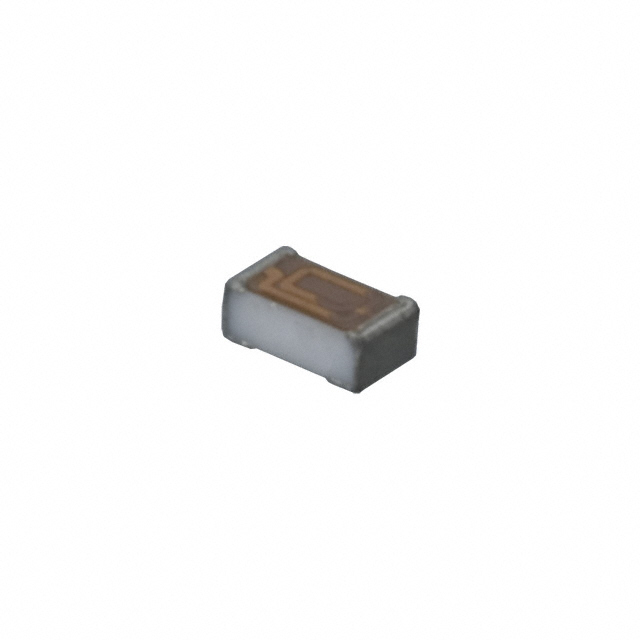

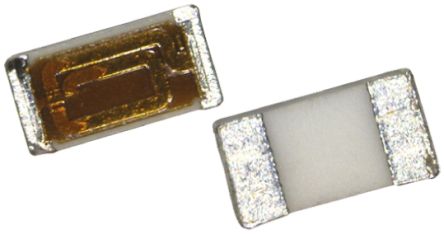

LQP15MN3N0B02D

LQP 系列 0402 3 nH ±0.1 nH 容差 190 mA 多层 功率电感

Murata 0402 LQP15M 系列薄膜器

LQP15M 超小型薄型片式电感器，带薄膜技术结构。 提供各种电感值，可实现无调谐装配。

高频率范围时的高 Q

由于低杂散电容和窄电感分布产生的高自谐振频率可在高频电路（例如电信设备）中提供稳定的电感

### 应用：-

移动电话的高频率电路，如 PA、ANT、VCO、SAW 等。

移动电话

“蓝牙”

W-LAN

一般高频电路

欧时:
Murata LQP15M 系列 LQP15MN3N0B02D 3 nH ±0.1nH 铁氧体 多层贴片式电感器, 0402 1005M封装, SRF: 6GHz Q: 13

立创商城:
3nH ±0.1nH 400mΩ

得捷:
FIXED IND 3NH 190MA 400 MOHM SMD

贸泽:
固定电感器 3nH 0402

艾睿:
This rf chip LQP15MN3N0B02D surface mount inductor from Murata is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 190m A with a maximum resistance of 400m Ohm. This product is 1.1 mm long, 0.45 mm tall and 0.6 mm deep. This device is made with thin film technology. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 6G Hz. It has an inductance of 3n H.

安富利:
Ind RF Chip Thin Film 3nH 0.1nH 500MHz 13Q-Factor 190mA 0402 Paper T/R

Chip1Stop:
Inductor RF Chip Thin Film 3nH 0.1nH 500MHz 13Q-Factor 190mA 400mOhm DCR 0402 Paper T/R

Verical:
Inductor RF Chip Unshielded Thick Film 0.003uH 0.1nH 500MHz 13Q-Factor 0.19A 0.4Ohm DCR 0402 T/R

儒卓力:
**LQP15MN 3nH 190mA 0,1nH TFT **

Win Source:
3nH Unshielded Thin Film Inductor 190mA 400 mOhm Max 0402 1005 Metric
