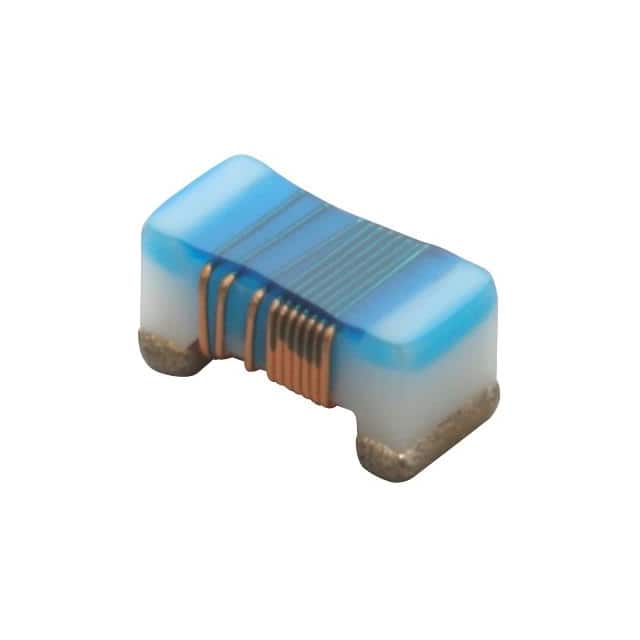

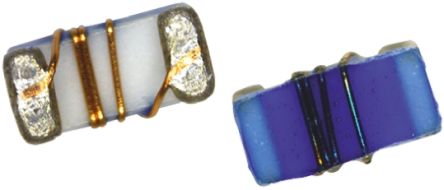

LQW18AN12NJ00D

Murata 0603 LQW18AN 系列线绕电感器高质量线圈电感器，设计用于 VHF 和 UHF 应用。 高谐振频率。 低容差电感值。 带有后缀 "10D" 的型号具有较低直流电阻值。 **应用：**高频率电路，用于无线电信设备：例如蓝牙、GSM、W-LAN。

固定器

欧时:
### Murata 0603 LQW18AN 系列线绕电感器高质量线圈电感器，设计用于 VHF 和 UHF 应用。 高谐振频率。 低容差电感值。 带有后缀 "10D" 的型号具有较低直流电阻值。 **应用：**高频率电路，用于无线电信设备：例如蓝牙、GSM、W-LAN。 ![http://china.rs-online.com/largeimages/L0109217-10.jpg]http://china.rs-online.com/largeimages/L0109217-10.jpg ### SMT 0603 电感器（扼流圈）

得捷:
FIXED IND 12NH 600MA 130MOHM SMD

立创商城:
12nH ±5% 130mΩ

艾睿:
Save valuable space on a PCB with this rf chip LQW18AN12NJ00D surface mount inductor from Murata. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 6G Hz. This device utilizes wirewound technology. This product is 1.8 mm long, 1 mm tall and 1 mm deep. It has an inductance of 12n H. It has a tolerance of 5%. This SMD inductor has a maximum DC current of 600m A with a maximum resistance of 130m Ohm.

安富利:
Ind RF Chip Wirewound 12nH 5% 100MHz 35Q-Factor 600mA 0603 Paper T/R

TME:
Inductor: wire; SMD; 0603; 12nH; 600mA; 0.13Ω; ftest:100MHz; Q:35

Verical:
Inductor RF Chip Unshielded Wirewound 0.012uH 5% 100MHz 35Q-Factor Non Magnetic 0.6A 0.13Ohm DCR 0603 T/R

儒卓力:
**LQW18A 0,012µH 600mA 5% WWT **
