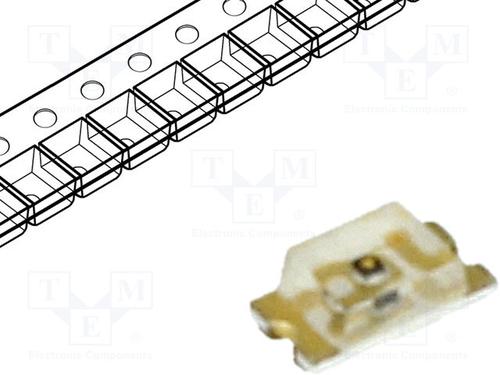

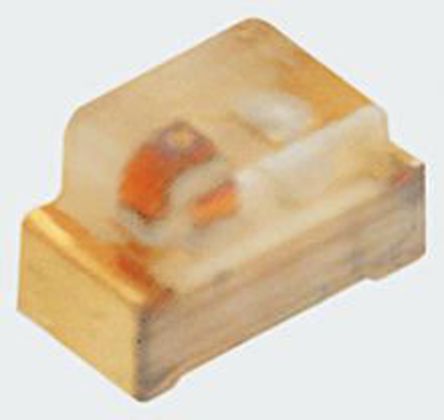

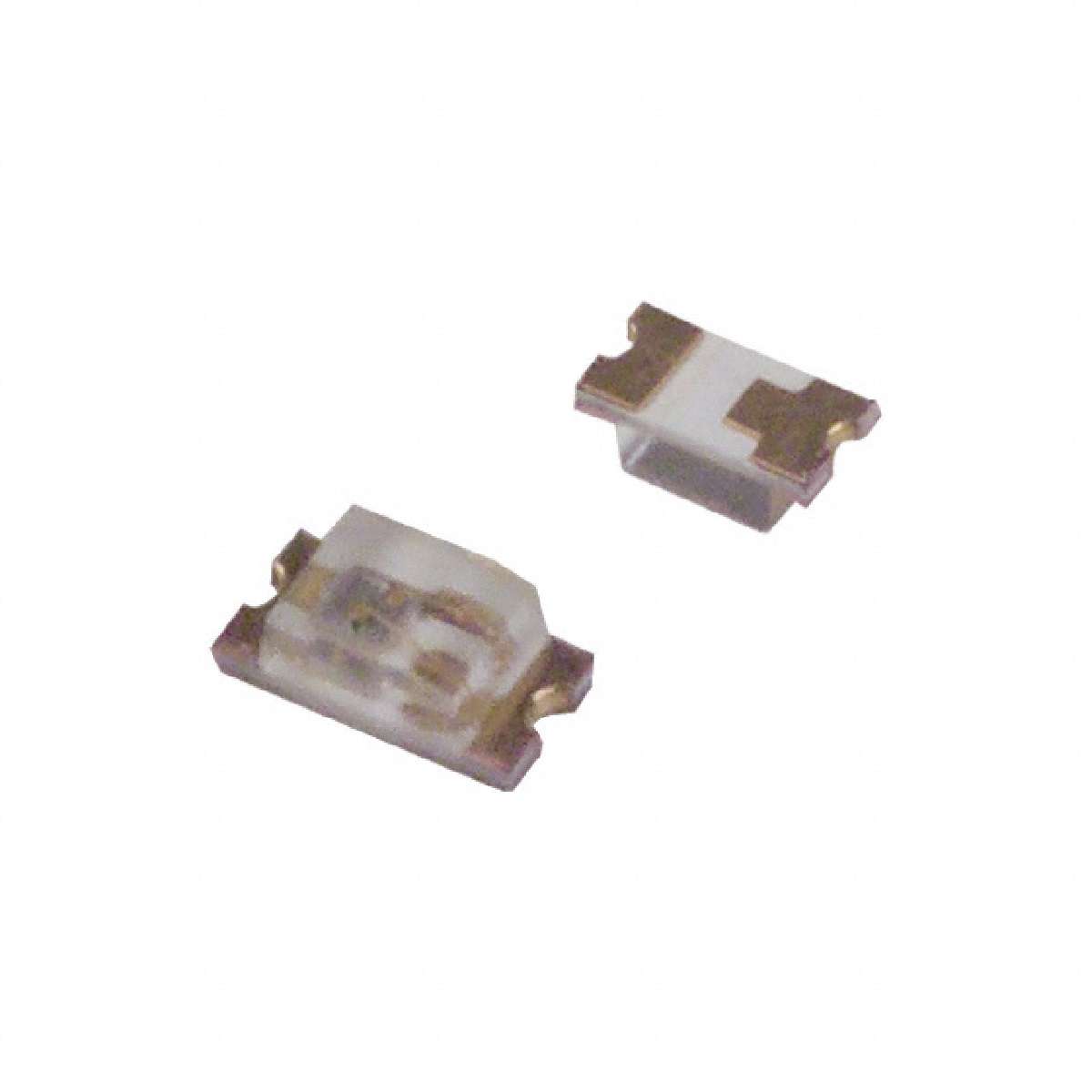

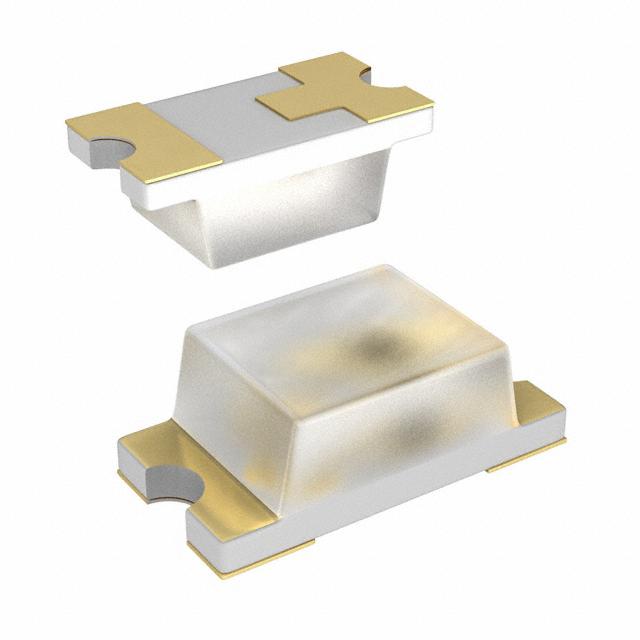

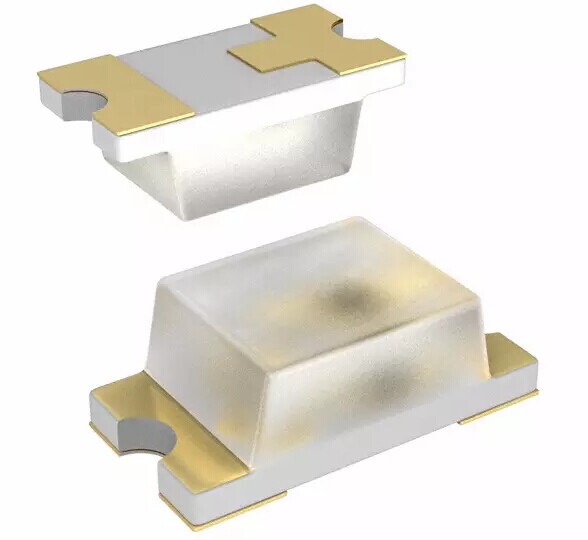

Lite-On 0603 Package Chip LEDsThis range of LEDs, from Lite-On, are in the standard 0603 rectangular package. They are flat-top Chip LEDs which are compatible with automatic placement equipment. There are a variety of colour options available and they come with a clear lens type. Features of the 0603 Chip LEDs: \- Standard 0603 package \- Viewing Angle: 130° \- Variety of colours ### 可见光 LED,Lite-On
灯珠
得捷:
LED GREEN CLEAR SMD
欧时:
Lite-On 绿色 LED LTST-C191KGKT, 35 mcd, 2.4 V, 130 °视角, 2 引脚 1608 0603 贴装
立创商城:
普绿/黄绿 567.5nm~576.5nm
艾睿:
LED Uni-Color Green 574nm 2-Pin Chip LED T/R
安富利:
LED Uni-Color Green 574nm 2-Pin Chip LED T/R
富昌:
Green 1.6 x 0.8 mm 130º 71 mcd Clear 2.4 V Surface Mount LED
TME:
LED; SMD; 0603; green; 18-71mcd; 1.6x0.8x0.55mm; 130°; 1.9÷2.4V
儒卓力:
**CHIP LED GREEN CLEAR 0603 **
Win Source:
LED GREEN CLEAR 0603 SMD
工作电压 1.9V ~ 2.4V
额定功率 75 mW
针脚数 2
正向电压 2 V
波长 571 nm
发光强度 35 mcd
视角 130°
透镜样式 Non-Diffused
峰值波长 574 nm
耗散功率 75 mW
测试电流 20 mA
正向电流 20 mA
正向电压Max 2.4 V
正向电流Max 30 mA
工作温度Max 85 ℃
工作温度Min -55 ℃
耗散功率Max 75 mW
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.55 mm
封装公制 1608
封装 0603
颜色 Green
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTST-C191KGKT LiteOn 光宝 | 当前型号 | 当前型号 |
LTST-C190KGKT 光宝 | 类似代替 | LTST-C191KGKT和LTST-C190KGKT的区别 |
STC 光宝 | 功能相似 | LTST-C191KGKT和STC的区别 |
C190 光宝 | 功能相似 | LTST-C191KGKT和C190的区别 |
