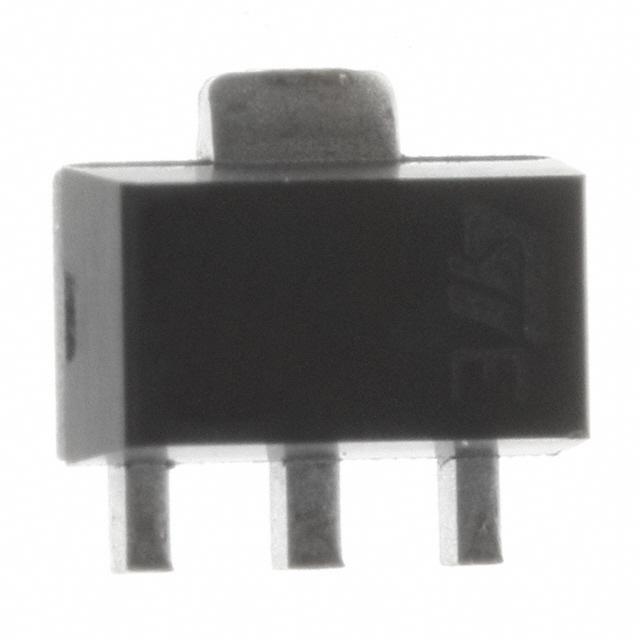

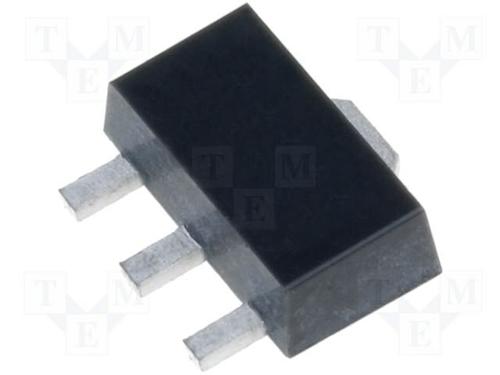

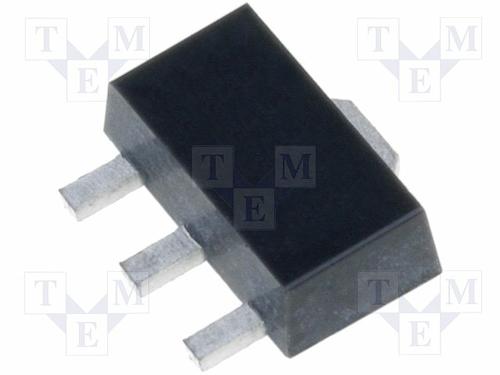

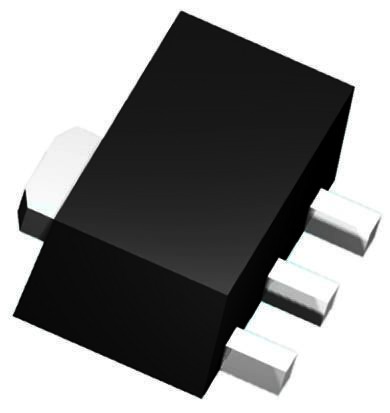

STMICROELECTRONICS L78L12ABUTR 线性稳压器直流/直流转换器, 19 V, 35 V, 12 V, 100 mA, SOT-89, 3 引脚
线性稳压器,100mA,STMicroelectronics
L78L 系列三端子正调节器嵌入内部电流限制和热关闭。 提供充足的散热片,可提供高达 100mA 的输出电流。
### 线性电压稳压器,STMicroelectronics
欧时:
STMicroelectronics L78Lxx 系列 L78L12ABUTR 线性稳压器, 最高 35 V输入, 12 V输出, 100mA最大输出, 3引脚
得捷:
IC REG LINEAR 12V 100MA SOT89-3
立创商城:
L78L12ABUTR
贸泽:
Linear Voltage Regulators Pos Vltg regulators
艾睿:
This standard L78L12ABUTR linear regulator from STMicroelectronics is used to manipulate the voltage level of your circuit. Its typical dropout voltage at current is 1.7@40mA V. This voltage regulation device&s;s single output can produce a current up to 0.1 A. Supply your circuit with sufficient power by implementing this, which does not exceed 35 V. With a fixed output that has a voltage of 12 V, this is power management at its best. Using a load regulation of 100mV and line regulation of 250mV is needed for a programmable DC power supply. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
安富利:
Standard Regulator Pos 12V 0.1A 4-Pin3+Tab SOT-89 T/R
富昌:
L78L Series 12 V 100 mA Fixed Surface Mount Voltage Regulator - SC-89
Chip1Stop:
Standard Regulator Pos 12V 0.1A 4-Pin3+Tab SOT-89 T/R
TME:
Voltage regulator; linear, fixed; 12V; 0.1A; SOT89; SMD; -40÷125°C
Verical:
Standard Regulator Pos 12V 0.1A 4-Pin3+Tab SOT-89 T/R
Newark:
# STMICROELECTRONICS L78L12ABUTR LINEAR VOLTREG REG, 12V, 0.1A, SOT-89 New
儒卓力:
**VREG. POS 12V 0,1A 4% SOT89 **
力源芯城:
0.1A,12V固定输出,正电压稳压器
DeviceMart:
IC REG LDO 12V .1A SOT-89
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 12V 100mA SOT-89-3
输出接口数 1
输入电压DC 35.0V max
输出电压 12 V
输出电流 100 mA
针脚数 3
静态电流 6.5 mA
跌落电压 1.7V @40mA
输入电压Max 35 V
输入电压Min 19 V
输出电流Max 100 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 ≤35 V
安装方式 Surface Mount
引脚数 3

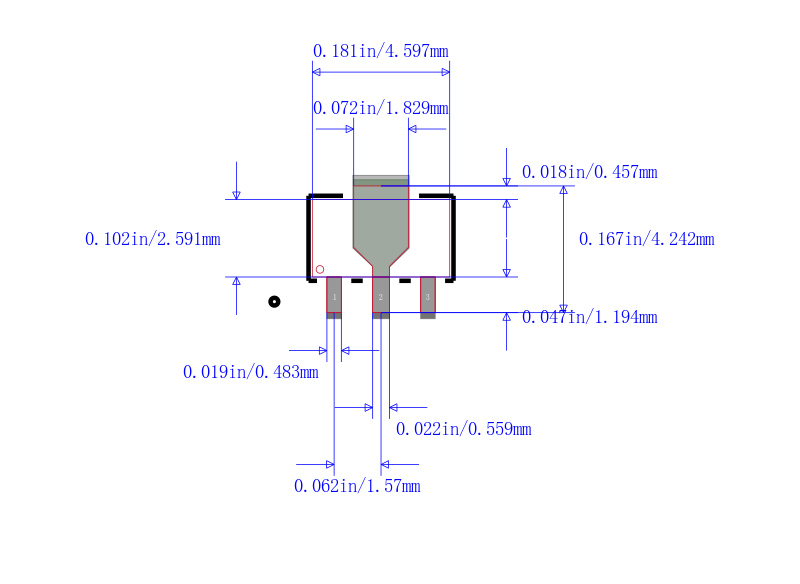

封装 SOT-89-3
长度 4.6 mm
宽度 2.6 mm
高度 1.6 mm
封装 SOT-89-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
L78L12ABUTR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
L78L12ABZ 意法半导体 | 类似代替 | L78L12ABUTR和L78L12ABZ的区别 |
KA78L12AMTF 飞兆/仙童 | 类似代替 | L78L12ABUTR和KA78L12AMTF的区别 |
NJM78L12UA 新日本无线 | 类似代替 | L78L12ABUTR和NJM78L12UA的区别 |
