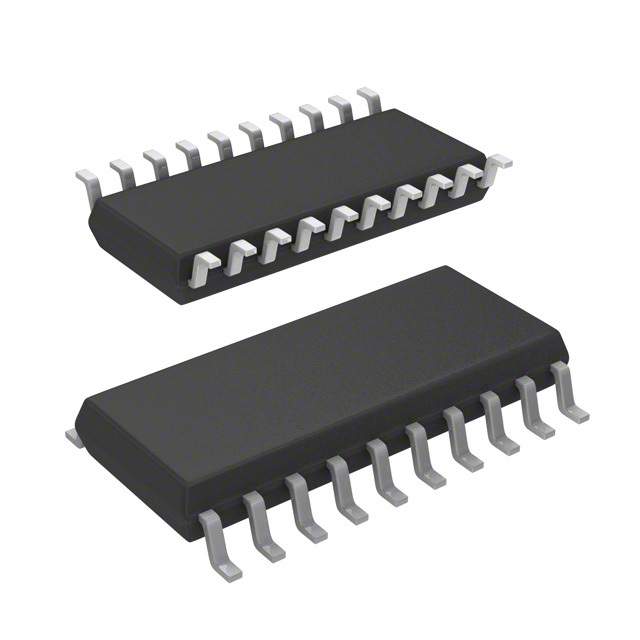

L27260 系列 28 V 1.2 MHz 通孔 双 功率 运算放大器 - SOIC-20
The infinite open-loop gain, high input impedance and low output impedance of this general purpose amplifier OP amp from STMicroelectronics produces a large amount of gain. Its maximum power dissipation is 1000 mW. Its typical dual supply voltage is ±3|±5|±9|±12 V, with a minimum of ±2 V and maximum of ±14 V. This op amp has a temperature range of -40 °C to 85 °C. This device utilizes bipolar technology. This device uses one or two power supplies. It has 2 channels per chip.
输出电流 1000 mA
供电电流 10 mA
电路数 2
通道数 2
耗散功率 1 W
共模抑制比 66 dB
转换速率 2.00 V/μs
增益频宽积 1.2 MHz
输入补偿电压 10 mV
输入偏置电流 200 nA
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 1.2 MHz
耗散功率Max 1000 mW
共模抑制比Min 66 dB
安装方式 Surface Mount
引脚数 20
封装 SO-20
封装 SO-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
L2726013TR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
L2726 意法半导体 | 完全替代 | L2726013TR和L2726的区别 |
