LTP-757KA

LTP-757KA图片1

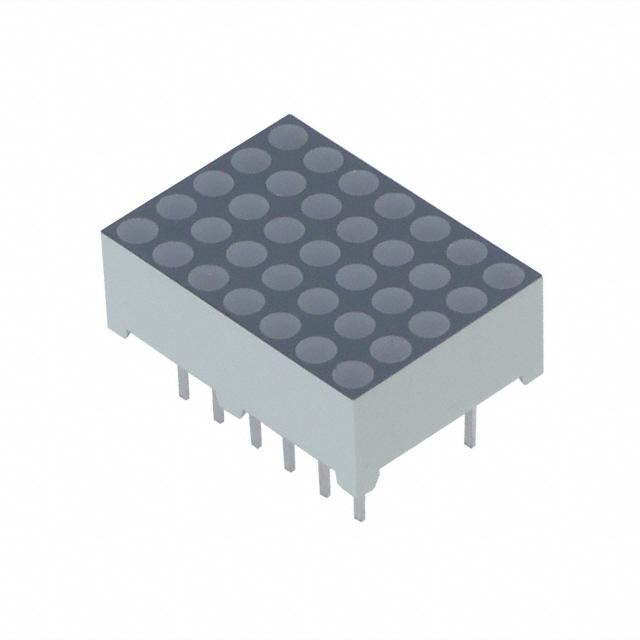

LTP-757KA图片2
LTP-757KA图片3

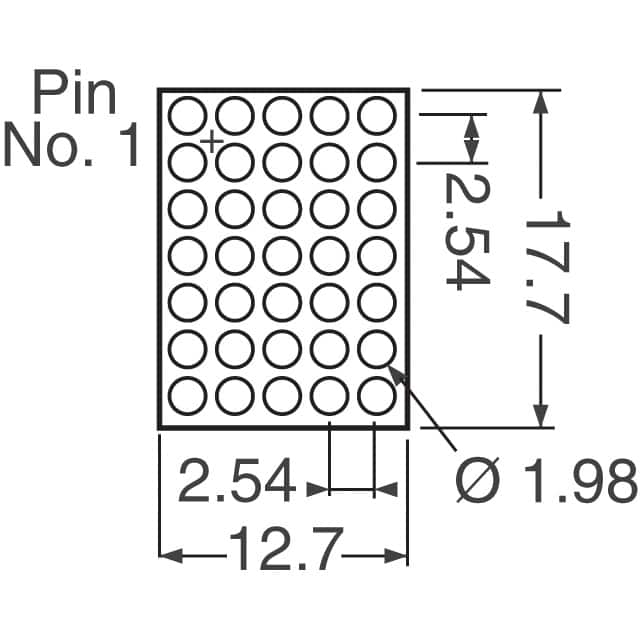

LTP-757KA图片4
LTP-757KA概述

Displays Dot Matrix Module 35LED Red Orange Row CA Column CC 12Pin DIP

LED 照明 - COB,驱动器,模块,灯条 5 x 7 共阳极行,共阴极列 橙红 2.05V - 0.50" 长 x 0.70" 宽 x 0.25" 高(12.66mm x 17.74mm x 6.30mm)


得捷:
LED MATRIX 5X7 0.7" RED-ORANGE


艾睿:
Numeric Displays Module 35LED Red Orange Anode Row Cathode Column 12-Pin DIP


安富利:
Displays Dot Matrix Module 35LED Red Orange Row CA Column CC 12-Pin DIP


LTP-757KA中文资料参数规格
技术参数

正向电压 2.05 V

波长 615 nm

发光强度 3.40 mcd

峰值波长 621 nm

正向电压Max 2.6 V

正向电流Max 13 mA

封装参数

安装方式 Through Hole

引脚数 12

封装 DIP

外形尺寸

长度 17.7 mm

宽度 12.7 mm

高度 6.30 mm

封装 DIP

厚度 6.3 mm

物理参数

颜色 Red

工作温度 -35℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买LTP-757KA
型号: LTP-757KA
制造商: LiteOn 光宝
描述:Displays Dot Matrix Module 35LED Red Orange Row CA Column CC 12Pin DIP
