马达/运动/点火控制器和驱动器 Single / Dual PMOS High-side H-bridge
L9959S/L9959U and L9959T are single and dual integrated H-bridges for resistive and inductive loads featuring output current direction and supervising functions.

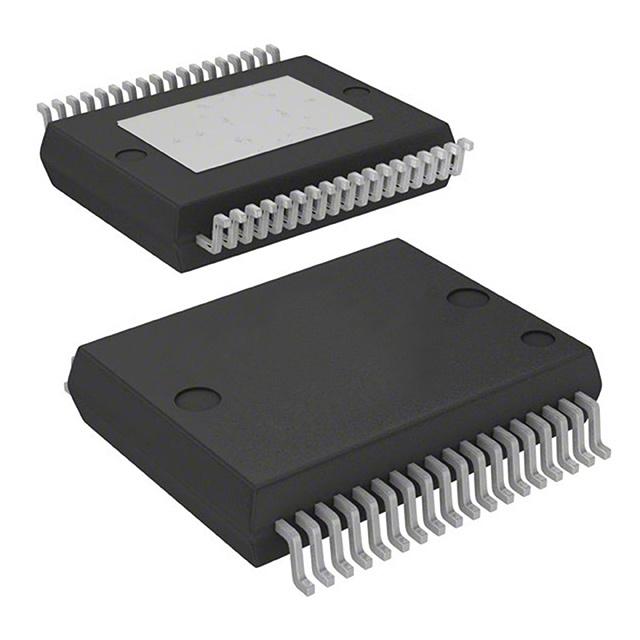

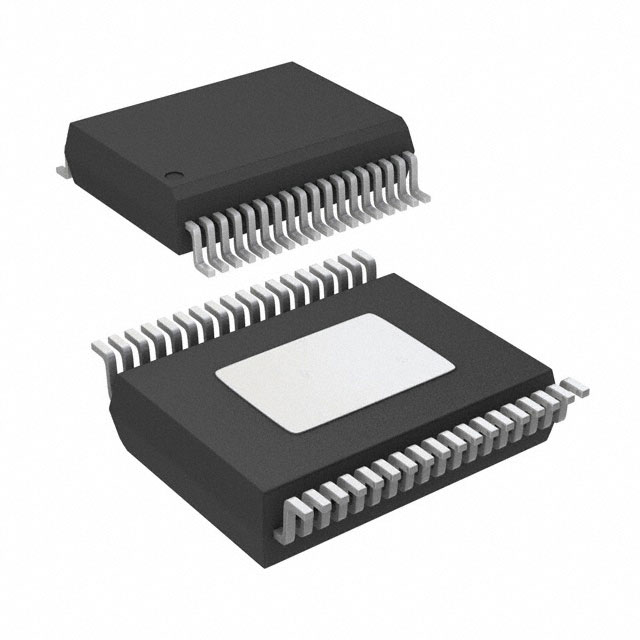

The PowerSSO24 houses one full H-Bridge, while the PowerSSO36 houses both two H-Bridges that can work in parallel, through independent input driving commands, and one full H-bridge, by improving PCB footprint design versus different target applications.
Target application ranges from throttle control actuators to exhaust gas recirculation control valves in automotive domain to a more general use to drive DC and Stepper motors.
**Key Features**
-
.
-
Full path RDSON less than 540 mΩ
-
.
-
Continuous load current > 3 A
-
.
-
Operating battery supply voltage 5 V to 28 V
-
.
-
Operating VDD supply voltage 4.5 V to 5.5 V
-
.
-
All ECU internal pins can withstand up to 18 V
-
.
-
Output switching frequency up to 11 kHz
-
.
-
Monitoring of VDD supply voltage
-
.
-
SPI programmable output current limitation from 5 A to 8.6 A in 3 steps
-
.
-
Over temperature and short circuit protection
-
.
-
Full diagnosis capability
-
.
-
Fast switch-off open-drain input/output
-
.
-
Current-monitoring with current feedback output signal CF
-
.
-
SPI-interface for configuration and diagnosis
-
.
-
Error history in second diagnosis register
-
.
-
Two independent enable pins: "/ABE" and "DIS"
-
.
-
Control of power stages by SPI or two input signals, PWM and DIR configurable via SPI
-
.
-
Logic levels 5 V compatible
-
.
-
Conformity to improved EMC requirements due to smart H-bridge switching
