LQH43MN821K03L

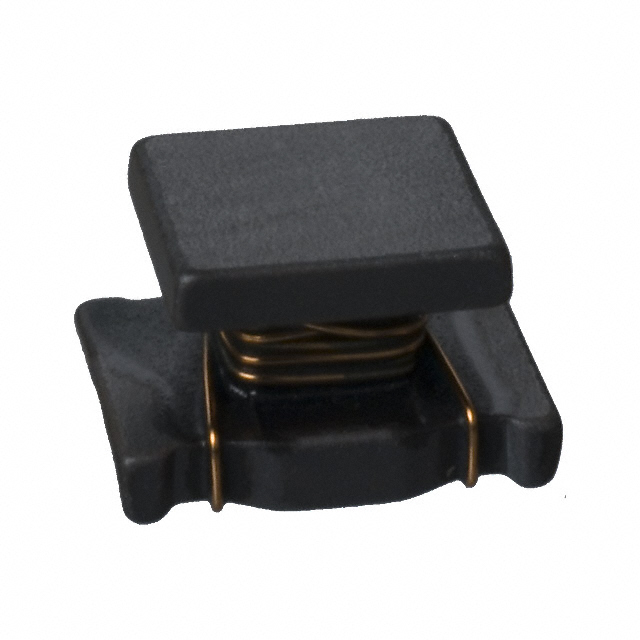

Murata 1812 LQH43MN 系列线绕电感器线圈贴片式电感器绕在铁氧体磁芯上。 高频率时的质量高。 低直流电阻。 高电流和电感。 ### 表面安装 1812 电感器（扼流圈）

Murata 1812 LQH43MN 系列线绕器

线圈贴片式电感器绕在铁氧体磁芯上。

高频率时的质量高。

低直流电阻。

高电流和电感。

立创商城:
820uH ±10%

得捷:
FIXED IND 820UH 60MA 20.5OHM SMD

欧时:
### Murata 1812 LQH43MN 系列线绕电感器线圈贴片式电感器绕在铁氧体磁芯上。 高频率时的质量高。 低直流电阻。 高电流和电感。 ### 表面安装 1812 电感器（扼流圈）

艾睿:
This general purpose chip LQH43MN821K03L surface mount inductor from Murata is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has an inductance of 820u H. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 2.2M Hz. This device is made with wirewound technology. It has a tolerance of 10%. This SMD inductor has a maximum DC current of 60m A with a maximum resistance of 20.5 Ohm. This product is 4.8 mm long, 2.8 mm tall and 3.4 mm deep.

安富利:
Ind General Purpose Chip Unshielded Wirewound 820uH 10% 1KHz 40Q-Factor Ferrite 60mA 1812 Embossed T/R

Chip1Stop:
Inductor General Purpose Chip Unshielded Wirewound 820uH 10% 1KHz 40Q-Factor Ferrite 60mA 20.5Ohm DCR 1812 Embossed T/R

TME:

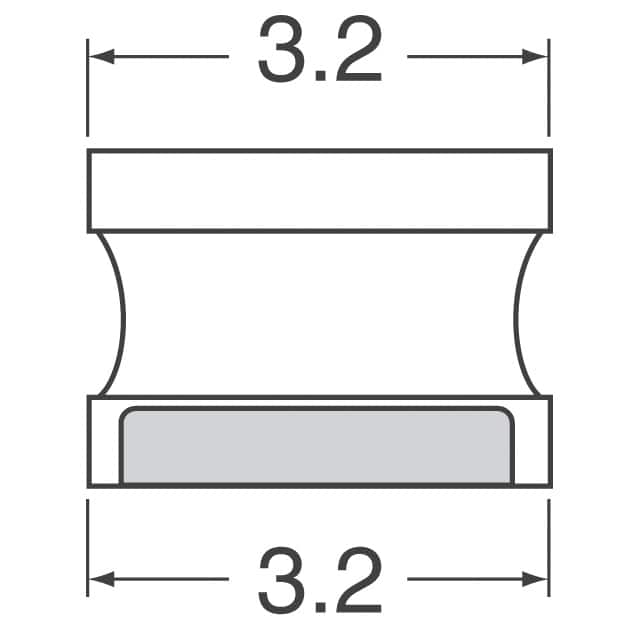

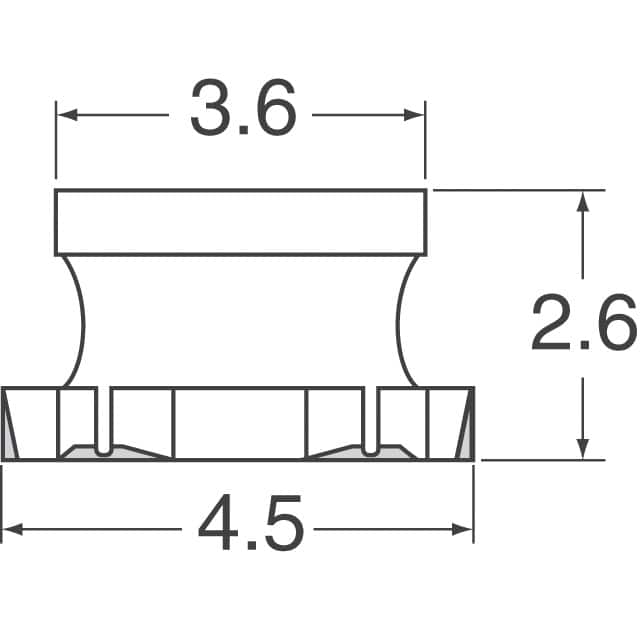

Inductor: wire; SMD; 820uH; 60mA; 20.5Ω; 4.5x3.2x2.6mm

Verical:
Inductor General Purpose Chip Unshielded Wirewound 820uH 10% 1KHz 40Q-Factor Ferrite 60mA 20.5Ohm DCR 1812 T/R

儒卓力:
**LQH43MN 820uH 60mA 10% WWT **
