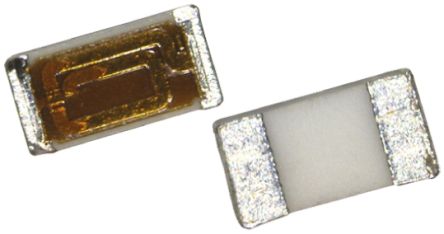

LQP15MN3N1W02D

Murata 0402 LQP15M 系列薄膜电感器LQP15M 超小型薄型片式电感器，带薄膜技术结构。 提供各种电感值，可实现无调谐装配。 高频率范围时的高 Q 由于低杂散电容和窄电感分布产生的高自谐振频率可在高频电路（例如电信设备）中提供稳定的电感 ### 应用：-移动电话的高频率电路，如 PA、ANT、VCO、SAW 等。 移动电话 “蓝牙” W-LAN 一般高频电路 ### 表面安装 0402 电感器（扼流圈）

Murata 0402 LQP15M 系列薄膜器

LQP15M 超小型薄型片式电感器，带薄膜技术结构。 提供各种电感值，可实现无调谐装配。

高频率范围时的高 Q

由于低杂散电容和窄电感分布产生的高自谐振频率可在高频电路（例如电信设备）中提供稳定的电感

### 应用：-

移动电话的高频率电路，如 PA、ANT、VCO、SAW 等。

移动电话

“蓝牙”

W-LAN

一般高频电路

欧时:
Murata LQP15M 系列 LQP15MN3N1W02D 3.1 nH ±0.05nH 铁氧体 多层贴片式电感器, 0402 1005M封装, SRF: 6GHz

立创商城:
3.1nH ±0.05nH 400mΩ

得捷:
FIXED IND 3.1NH 190MA 400 MOHM

艾睿:
Make any circuit look clean and compact using this rf chip LQP15MN3N1W02D surface mount inductor from Murata. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 1.1 mm long, 0.45 mm tall and 0.6 mm deep. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 6G Hz. This SMD inductor has a maximum DC current of 190m A with a maximum resistance of 400m Ohm. This device is made with thin film technology. It has an inductance of 3.1n H.

Chip1Stop:
Inductor RF Chip Thin Film 3.1nH 0.05nH 500MHz 13Q-Factor 190mA 400mOhm DCR 0402 Paper T/R

Verical:
Inductor RF Chip Unshielded Thin Film 0.0031uH 0.05nH 500MHz 13Q-Factor Non Magnetic 0.19A 0.4Ohm DCR 0402 T/R
