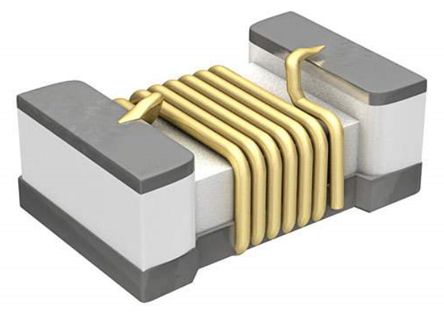

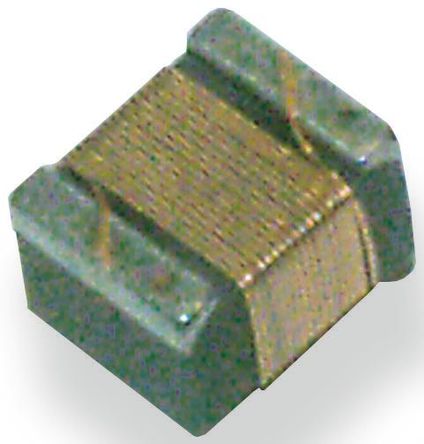

LQW15AN6N8H00D

Murata 0402 LQW15AN_00D 系列线绕电感器 0.0015μH - 0.0095μH高质量线圈电感器，设计用于 VHF 和 UHF 应用。 高谐振频率。 低容差电感值。 应用：高频率电路，用于无线电信设备，例如蓝牙、GSM、W-LAN。 ### 表面安装 0402 电感器（扼流圈）

固定器

得捷:
FIXED IND 6.8NH 700MA 90MOHM SMD

立创商城:
6.8nH ±3% 700mA 90mΩ

欧时:
### Murata 0402 LQW15AN_00D 系列线绕电感器 0.0015μH - 0.0095μH高质量线圈电感器，设计用于 VHF 和 UHF 应用。 高谐振频率。 低容差电感值。 应用：高频率电路，用于无线电信设备，例如蓝牙、GSM、W-LAN。 ![http://china.rs-online.com/largeimages/L0107833-10.jpg]http://china.rs-online.com/largeimages/L0107833-10.jpg ### 表面安装 0402 电感器（扼流圈）

艾睿:
Use this rf chip LQW15AN6N8H00D surface mount inductor from Murata to make any circuit look clean and compact. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device is made with wirewound technology. It has a tolerance of 3%. This SMD inductor has a maximum DC current of 370m A with a maximum resistance of 270m Ohm. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 4.5G Hz. This product is 1.1 mm long, 0.6 mm tall and 0.7 mm deep. It has an inductance of 6.8n H.

安富利:
Ind RF Chip Wirewound 6.8nH 3% 100MHz 25Q-Factor 700mA 0402 Paper T/R

Chip1Stop:
Inductor RF Chip Wirewound 6.8nH 3% 100MHz 25Q-Factor 700mA 90mOhm DCR 0402 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.0068uH 3% 100MHz 25Q-Factor Non Magnetic 0.7A 0.09Ohm DCR 0402 T/R

儒卓力:
**LQW15A 0,0068µH 700mA 3% WWT **

Win Source:
6.8nH Unshielded Wirewound Inductor 700mA 90 mOhm Max 0402 1005 Metric
