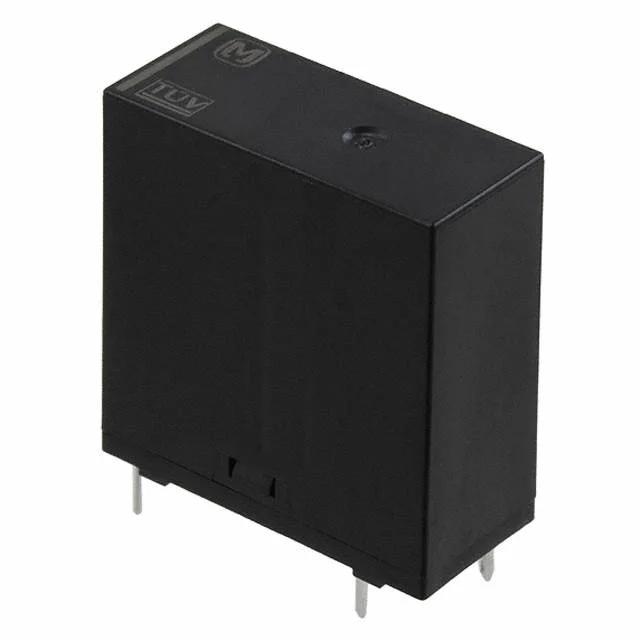

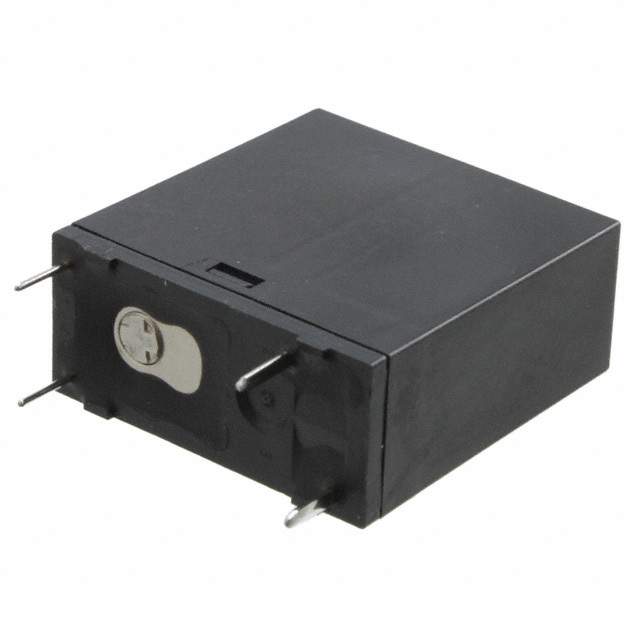

General Purpose Relay SPST-NO 1 Form A 24VDC Coil Through Hole
立创商城:
24VDC 5A 无锁存
得捷:
RELAY GEN PURPOSE SPST 5A 24V
艾睿:
Power Relay 24VDC 8A SPST-NO24x11x25mm THT
Allied Electronics:
RELAY GEN PURPOSE SPST 5A 24V
Verical:
Power Relay 24VDC 8A SPST-NO24x11x25mm THT
MASTER:
Power Relay 24VDC 8A SPST-NO24x11x25mm THT
Electro Sonic:
Power Relay 24VDC 8A SPST-NO24x11x25mm THT
Win Source:
General Purpose Relay SPST-NO 1 Form A 24VDC Coil Through Hole
触点额定电流 5 A
线圈电压 24 VDC
线圈电流 10.4 mA
线圈电阻 2.3 kΩ
线圈电压DC 24 V
线圈功率 250 mW
开关电流Max 8 A
工作温度Max 70 ℃
工作温度Min -40 ℃
安装方式 Through Hole
封装 Through Hole
高度 25 mm
封装 Through Hole
触点材质 Silver Tin Oxide
工作温度 -40℃ ~ 70℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490050
