LA1K-2C6A

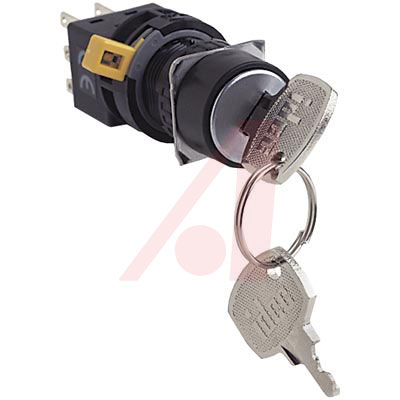

LA1K-2C6A图片1
LA1K-2C6A图片2
LA1K-2C6A图片3
LA1K-2C6A图片4
LA1K-2C6A图片5
LA1K-2C6A概述

SWITCH, KEY OPERATED, DPDT, 5A, 125V

Solder Termination 50 Ohms Max. Miniature Key Switch

** General Specifications. Contact Ratings:** DPDT, snap action. Max. Carry Current: 5 A. ** Max. Insulation Voltage:** 250 VAC/VDC. ** Operational Breaking Currents:** AC inductive load — 2 A @ 120 V, 1.5 A @ 240 V; DC resistive load — 2 A @ 30 V, 0.4 A @ 125 V. ** Termination:** 0.110" solder/quick connect. ** Degree of Protection:** NEMA 4X/IP65. ** Mechanical Life. Momentary Pushbuttons:** 2,000,000 operations. ** All others:** 250,000 operations. ** Electrical Life:** 100,000 operations at full rated load. ** LED Lamp Ratings:** 24 VAC/VDC @ 8 mA. ** Mounting:** 16 mm mounting hole

Miniature key switch with locking lever removable contact blocks.

LA1K-2C6A中文资料参数规格
技术参数

额定电压DC 5.00 V

接触器类型 Key

额定电流 3 A

绝缘电阻 ≥100 MΩ

触点类型 DPDT

针脚数 2

接触电阻 ≤50 Ω

触点额定电流 3.00 A

额定电压 125 VAC

封装参数

安装方式 Solder Tab

其他

产品生命周期 Not Recommended for New Design

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 3926909880

数据手册

在线购买LA1K-2C6A
型号: LA1K-2C6A
制造商: IDEC
描述:SWITCH, KEY OPERATED, DPDT, 5A, 125V
