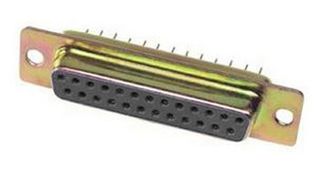

AMPHENOL COMMERCIAL PRODUCTS L77DB25SU 连接器, D-SUB
The DVI connector from allows effective communication between your serial connections. It has a maximum voltage rating of 300 VAC. Its pitch is 2.76 mm. It has a straight body orientation. This 2-row connector has a single port. This socket type connector"s 25 contacts that are made out of bronze and plated with gold over nickel. L77DB25SU is housed in thermoplastic. This device has a maximum current rating of 7.5 A. This DVI connector has an operating temperature of -55 to 85 °C. Its 25 terminals use the solder termination method. This product is 53.42 mm long, 11.42 mm tall and 12.93 mm deep.
触点数 25
极性 Female
触点电镀 Gold
额定电流 7.5 A
绝缘电阻 5000 MΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 25
额定电流Max 7.5 A
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压Max 300 VAC
额定电压 300 V
工作电压Max 300 VAC
接触电阻Max 8.5 mΩ
安装方式 Through Hole
长度 53.42 mm
宽度 12.93 mm
高度 11.42 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 125℃
外壳材质 Plastic
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
L77DB25SU Amphenol 安费诺 | 当前型号 | 当前型号 |
DBM25S300N 法马通 | 类似代替 | L77DB25SU和DBM25S300N的区别 |
DBMS25S300 法马通 | 类似代替 | L77DB25SU和DBMS25S300的区别 |
1-5745967-4 泰科 | 功能相似 | L77DB25SU和1-5745967-4的区别 |
