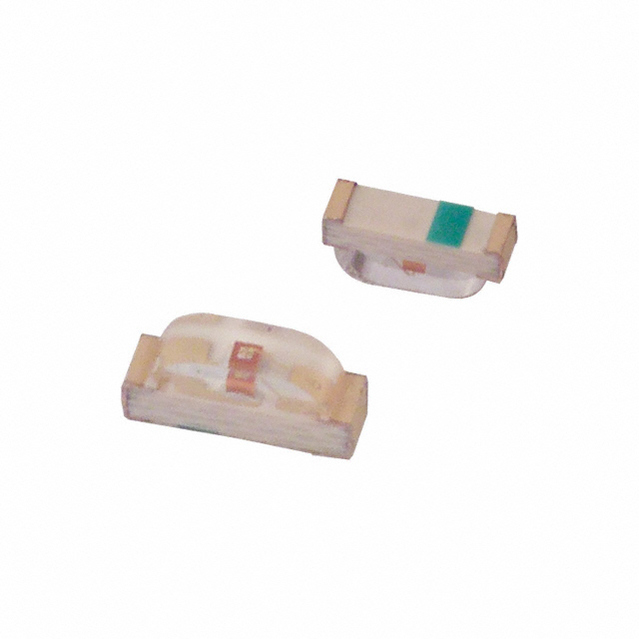

Lite-On 0805 Package Side View Chip LEDsLite-On"s family of 0805 side view Chip LEDs are ideal for LCD backlighting applications. They come in the standard 0805 side looking package. This range of LEDs is available in a variety of single colour options. Dimensions: 2.1 x 0.6 mm Viewing angle: 130° Single colour ### 可见光 LED,Lite-On
Lite-On 0805 封装侧视芯片
Lite-On 的 0805 侧视芯片 LED 系列特别适用于 LCD 背光应用。它们采用标准 0805 侧视封装。此 LED 系列提供各种单色选项。
尺寸:2.1 x 0.6 mm
视角:130°
单色
得捷:
LED RED CLEAR SMD R/A
欧时:
Lite-On 橙红色 LED LTST-S220EKT, 4 mcd, 2.6 V, 130 °视角, 2 引脚 2012 0805 侧视 贴装
艾睿:
LED Uni-Color Red Orange 630nm 2-Pin SMD T/R
Verical:
LED Uni-Color Red Orange 630nm 2-Pin SMD T/R
额定功率 100 mW
针脚数 2
正向电压 2 V
波长 621 nm
发光强度 4 mcd
视角 130°
透镜样式 Non-Diffused
峰值波长 630 nm
耗散功率 100 W
测试电流 20 mA
正向电流 20 mA
正向电压Max 2.6 V
正向电流Max 30 mA
工作温度Max 85 ℃
工作温度Min -55 ℃
耗散功率Max 100 mW
安装方式 Surface Mount
引脚数 2
封装公制 2012
封装 0805
长度 2.1 mm
宽度 1 mm
高度 0.60 mm
封装公制 2012
封装 0805
颜色 Red
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTST-S220EKT LiteOn 光宝 | 当前型号 | 当前型号 |
LNJ810L6DRA 松下 | 功能相似 | LTST-S220EKT和LNJ810L6DRA的区别 |
