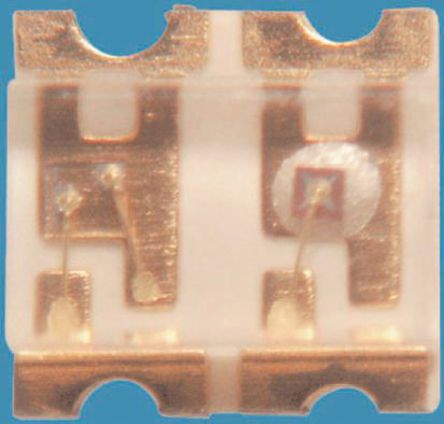

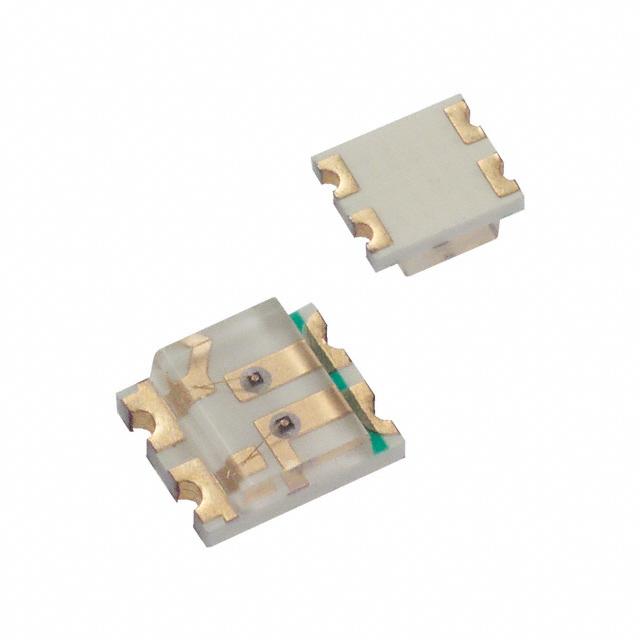

Lite-On 1210 Package Chip LEDsThis range of LEDs, from Lite-On, are in the standard 1210 Chip LED package. They are dual-colour LEDs available in a variety of colour options. \- 1210 Chip LED package \- Dual-colour \- Viewing angle: 130° \- Dimensions: 3.2 x 2.7 mm ### 可见光 LED,Lite-On
Lite-On 1210 封装芯片
该 Lite-On LED 系列采用标准 1210 芯片 LED 封装。它们是双色 LED,提供各种颜色选项。
\- 1210 芯片 LED 封装
\- 双色
\- 视角:130°
\- 尺寸:3.2 x 2.7 mm
得捷:
LED GREEN/YELLOW CLEAR CHIP SMD
欧时:
Lite-On 2个 黄绿色 LED LTST-C155GYKT, 6 mcd, 2.6 V, 130 °视角, 4 引脚 3125 1210 贴装
艾睿:
LED Bi-Color Green/Yellow 565nm/585nm 4-Pin SMD T/R
儒卓力:
**CHIP LED DUAL COLOR GREEN/YELL **
针脚数 4
正向电压 2.1 V
波长 569nm Green,588nm Yellow
发光强度 6.00 mcd
视角 130°
透镜样式 Non-Diffused
峰值波长 565nm, 585nm
耗散功率 100/60mW
测试电流 10 mA
正向电压Max 2.6 V
工作温度Max 85 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 4
封装公制 3225
封装 1210
长度 3.20 mm
宽度 2.70 mm
高度 1.10 mm
封装公制 3225
封装 1210
颜色 Green, Yellow
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
