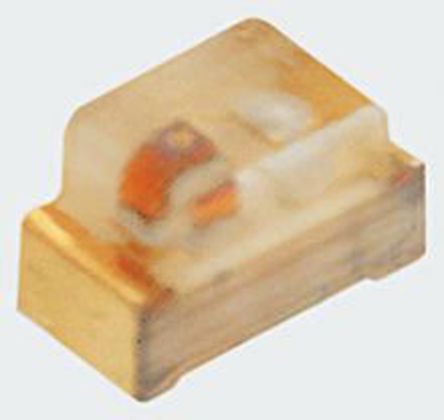

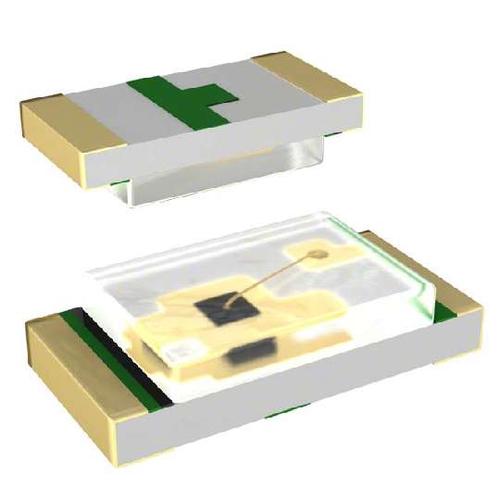

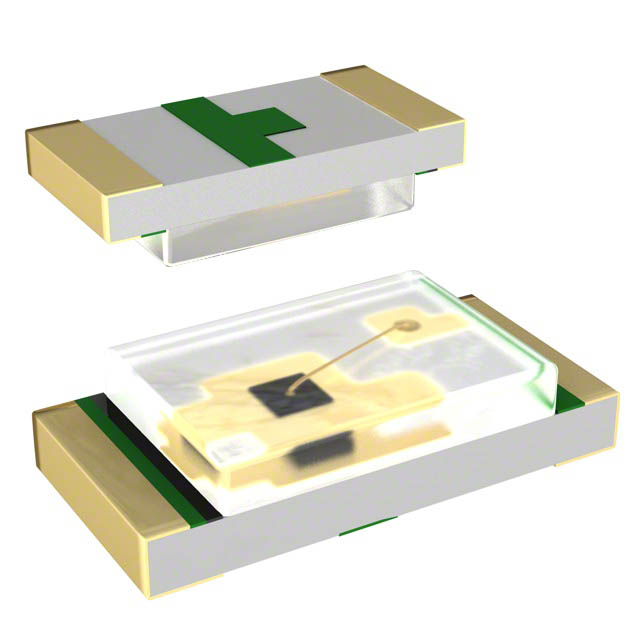

Lite-On 0603 Package Chip LEDsThis range of LEDs, from Lite-On, are in the standard 0603 rectangular package. They are flat-top Chip LEDs which are compatible with automatic placement equipment. There are a variety of colour options available and they come with a clear lens type. Features of the 0603 Chip LEDs: \- Standard 0603 package \- Viewing Angle: 130° \- Variety of colours ### 可见光 LED,Lite-On
Lite-On 0603 封装芯片
Lite-On 的此系列 LED 采用标准 0603 矩形封装。它们是与自动放置设备兼容的平顶芯片 LED。提供各种颜色且随附透明透镜类型。
0603 芯片 LED 的特点:
\- 标准 0603 封装
\- 视角:130°
\- 各种颜色
得捷:
LED YELLOW CLEAR CHIP SMD
欧时:
Lite-On 黄色 LED LTST-C193KSKT-5A, 45 mcd, 2.3 V, 130 °视角, 2 引脚 1608 0603 贴装
立创商城:

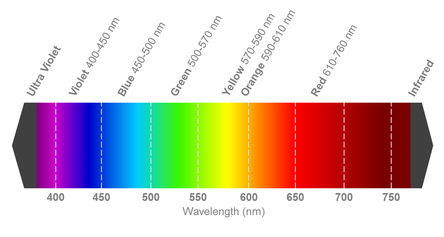

黄灯 587nm~594.5nm
贸泽:
标准LED-SMD Yellow 589nm 22mcd 5mA
艾睿:
LED Uni-Color Yellow 591nm 2-Pin Chip LED T/R
TME:

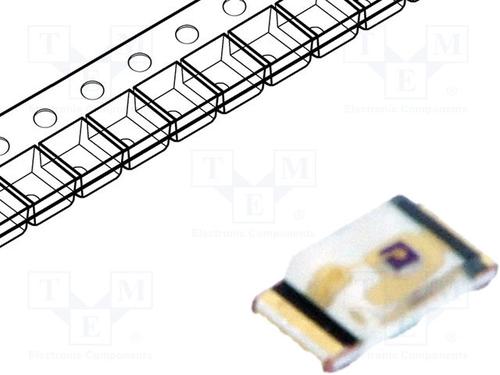

LED; SMD; 0603; yellow; 7.1-45mcd; 1.6x0.8x0.35mm; 130°; 1.7÷2.3V
Verical:
LED Uni-Color Yellow 591nm 2-Pin Chip LED T/R
儒卓力:
**CHIP LED YELLOW CLEAR 0603 **
力源芯城:
黄色 顶视贴片LED
Win Source:
Yellow 591nm LED Indication - Discrete 2V 0603 1608 Metric
工作电压 1.7V ~ 2.3V
针脚数 2
正向电压 2 V
波长 591 nm
发光强度 45 mcd
视角 130°
峰值波长 591 nm
耗散功率 75 W
测试电流 5 mA
正向电流 30 mA
正向电压Max 2.3 V
正向电流Max 30 mA
工作温度Max 85 ℃
工作温度Min -55 ℃
耗散功率Max 75 mW
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.35 mm
封装公制 1608
封装 0603
颜色 Yellow
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
