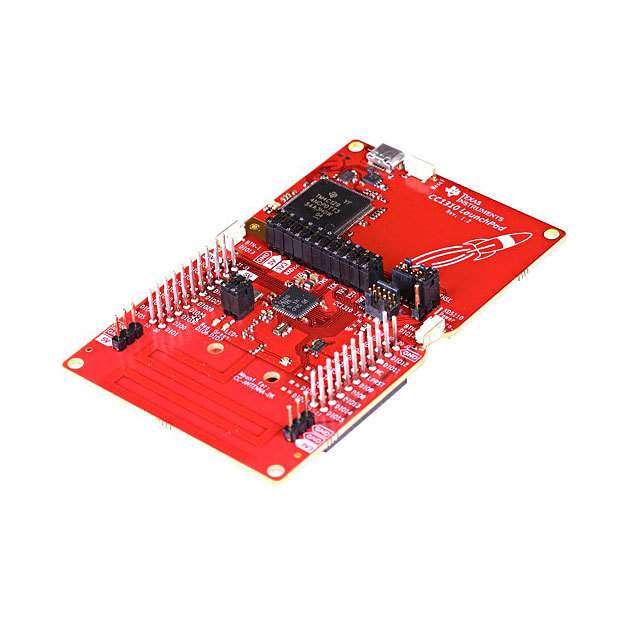

TEXAS INSTRUMENTS LAUNCHXL-CC1310 开发板, CC1310, LAUNCHPAD 新
The is a SimpleLink CC1310 sub-1GHz wireless microcontroller MCU LaunchPad development kit. It is the first LaunchPad kit with a sub-1GHz radio which offers long-range connectivity, combined with a 32bit ARM cortex-M3 processor on a single chip. The CC1310 device is a wireless MCU targeting low-power, long-range wireless applications. The CC1310 wireless MCU contains a 32bit ARM cortex-M3 processor that runs at 48MHz as the main processor and a rich peripheral feature set that includes a unique ultra-low power sensor controller. This sensor controller is ideal for interfacing external sensors and for collecting analogue and digital data autonomously while the rest of the system is in sleep mode.
- .
- LaunchPad with sub-1GHz radio for wireless applications with integrated PCB trace antenna
- .
- Broad band antenna supports 868MHz ISM band for Europe, 915MHz ISM band for US with a single board
- .
- On-board emulator gets user started with instant code development in CCS cloud
- .
- Can be used with both LaunchPad kit and SmartRF studio applications
- .
- Access all I/O signals with the BoosterPack plug-in module connectors
- .
- Compatible with LCD BoosterPack
The SimpleLink CC1310 LaunchPad kit LAUNCHXL-CC1310 is not supported in the Energia ecosystem.
