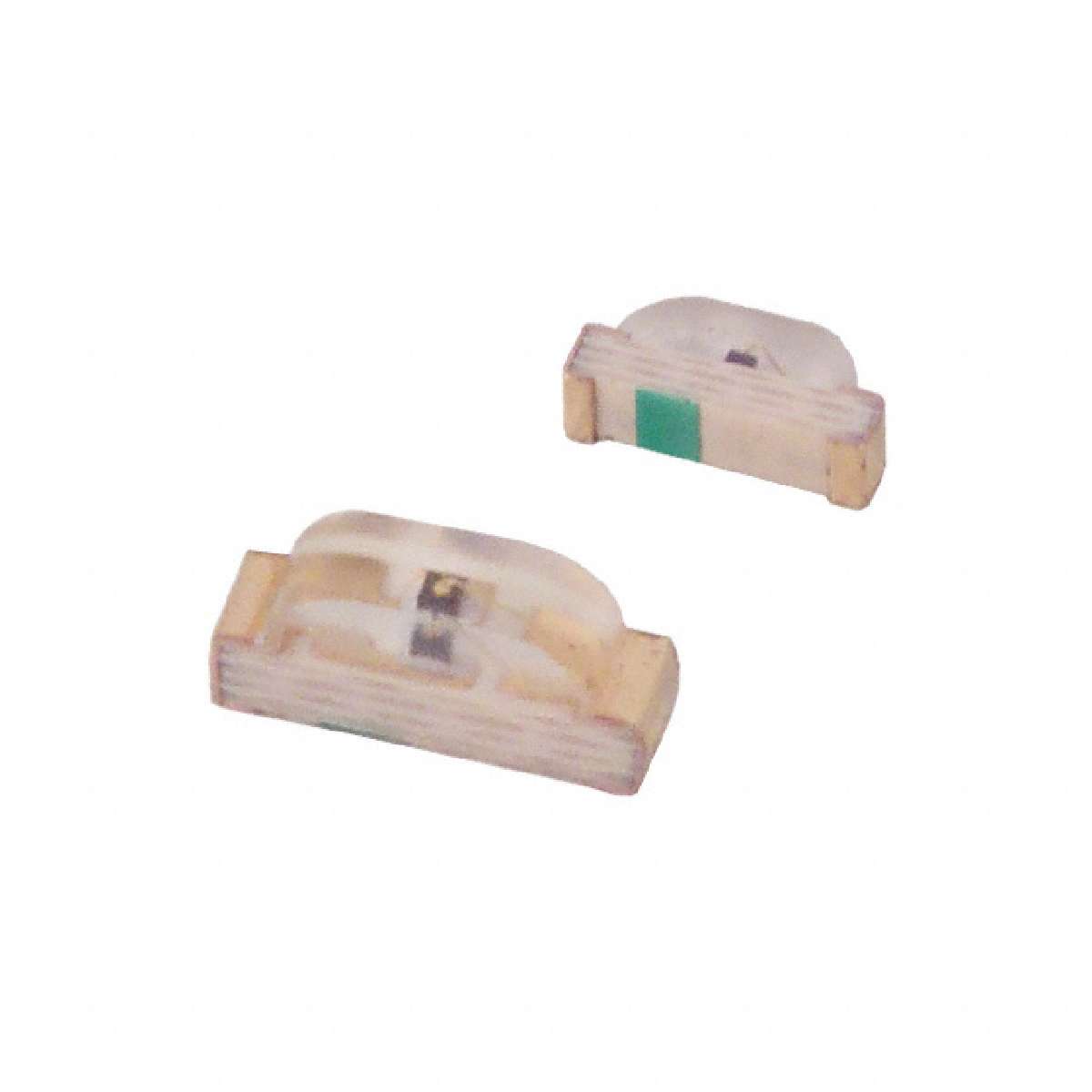

Lite-On 0805 Package Side View Chip LEDsLite-On"s family of 0805 side view Chip LEDs are ideal for LCD backlighting applications. They come in the standard 0805 side looking package. This range of LEDs is available in a variety of single colour options. Dimensions: 2.1 x 0.6 mm Viewing angle: 130° Single colour ### 可见光 LED,Lite-On
Lite-On 0805 Package Side View Chip s
Lite-On"s family of 0805 side view Chip LEDs are ideal for LCD backlighting applications. They come in the standard 0805 side looking package. This range of LEDs is available in a variety of single colour options.
Dimensions: 2.1 x 0.6 mm
Viewing angle: 130°
Single colour
### 可见光 LED,Lite-On
得捷:
LED YELLOW CLEAR CHIP SMD R/A
立创商城:
黄灯 589nm 侧贴
欧时:
Lite-On 黄色 LED LTST-S220KSKT, 60 mcd, 2.4 V, 130 °视角, 2 引脚 2012 0805 侧视 贴装
艾睿:
LED Uni-Color Yellow 588nm 2-Pin Chip LED T/R
Verical:
LED Uni-Color Yellow 588nm 2-Pin Chip LED T/R
儒卓力:
**SIDE LED 0805 YELLOW **
额定功率 75 mW
针脚数 2
正向电压 2 V

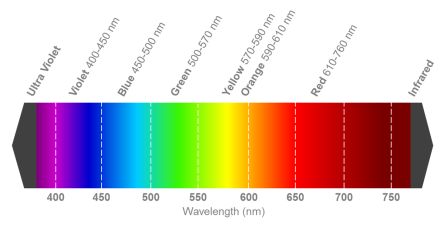

波长 589 nm
发光强度 54 mcd
视角 130°
透镜样式 Non-Diffused
峰值波长 591 nm
耗散功率 75 W
测试电流 20 mA
正向电流 30 mA
正向电压Max 2.4 V
正向电流Max 30 mA
工作温度Max 85 ℃
工作温度Min -55 ℃
耗散功率Max 75 mW
安装方式 Surface Mount
引脚数 2
封装公制 2012
封装 0805
长度 2.1 mm
宽度 1 mm
高度 0.60 mm
封装公制 2012
封装 0805
颜色 Yellow
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
