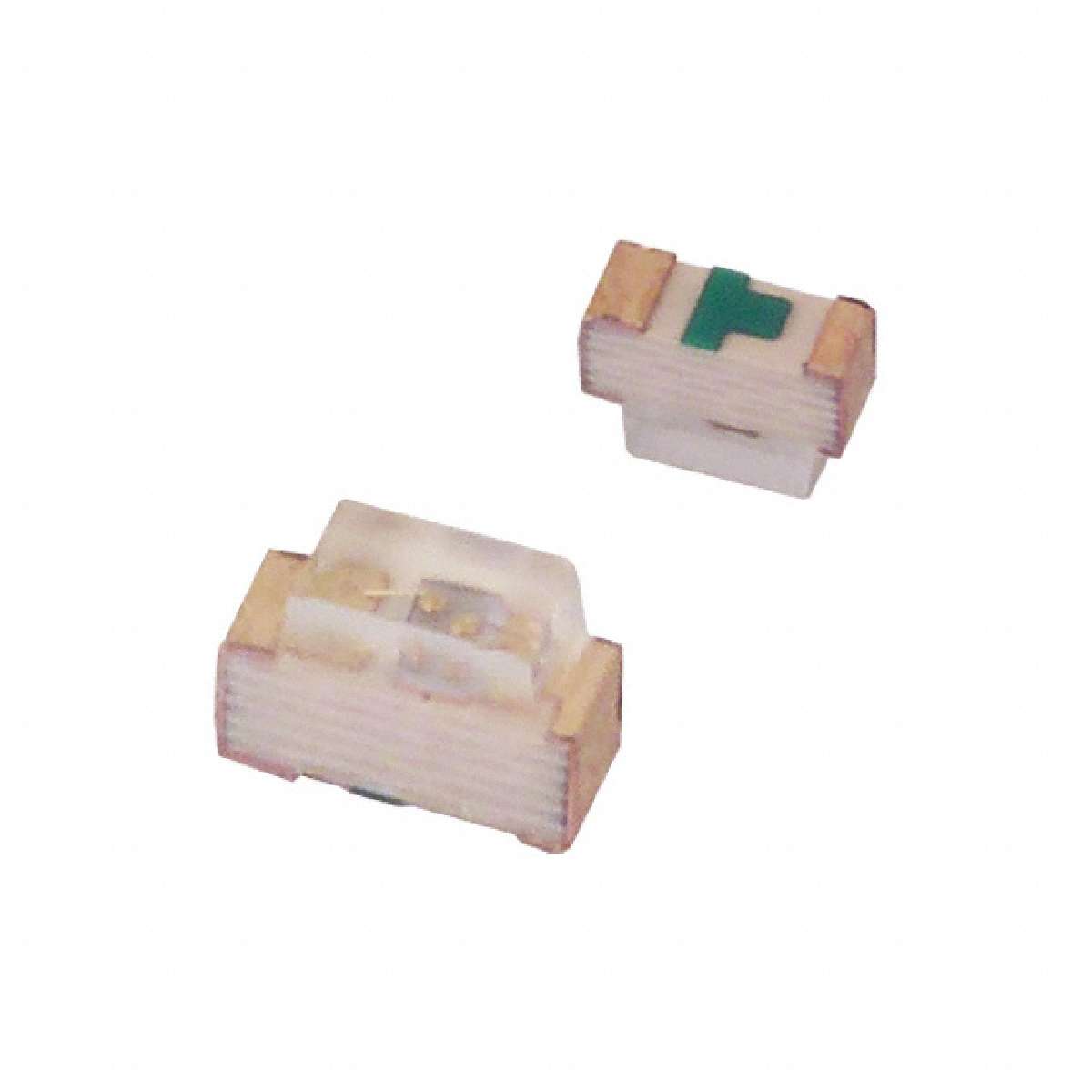

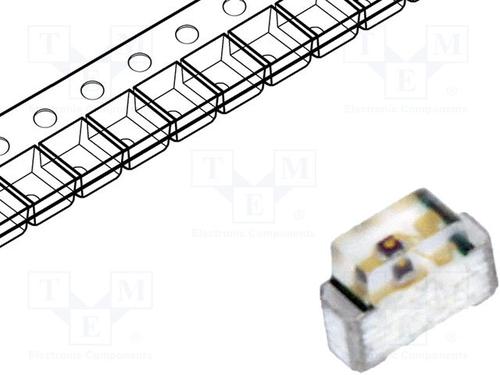

Lite-On 1608 0603 侧视 绿色 LED, 71 mcd 130 ° 贴装
Lite-On 0603 Package Side View Chip s
This range of LEDs, from Lite-On, are in the standard 0603 side looking package. There are a variety of colour options available and they come with a clear lens type.
Dimensions: 1.6 x 0.6 mm
0603 side view package
Viewing angle: 130°
### 可见光 LED,Lite-On
得捷:
LED GREEN CLEAR CHIP SMD R/A
欧时:
Lite-On 绿色 LED LTST-S270KGKT, 71 mcd, 2.4 V, 130 °视角, 2 引脚 1608 0603 侧视 贴装
立创商城:
普绿/黄绿 571nm 侧贴
贸泽:
标准LED-SMD Green Clear 571nm
艾睿:
LED Low-Power Uni-Color Green 574nm 2V 2-Pin Chip LED T/R
富昌:
Green 1.6 x 0.6 x 1.15 mm 130° Water Clear 18 to 78 mcd 2 V SMT LED
TME:
LED; SMD; 0604; green; 18-71mcd; 1.6x1.15x0.6mm; 130°; 2÷2.4V; 20mA
儒卓力:
**SIDE LED 0603 GREEN SUPERTHIN **
工作电压 2V ~ 2.4V
针脚数 2
正向电压 2 V
波长 571 nm
发光强度 35.0 mcd
视角 130°
透镜样式 Non-Diffused
峰值波长 574 nm
测试电流 20 mA
正向电压Max 2.4 V
正向电流Max 30 mA
工作温度Max 85 ℃
工作温度Min -30 ℃
耗散功率Max 75 mW
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 1.15 mm
高度 0.60 mm
封装公制 1608
封装 0603
颜色 Green
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
