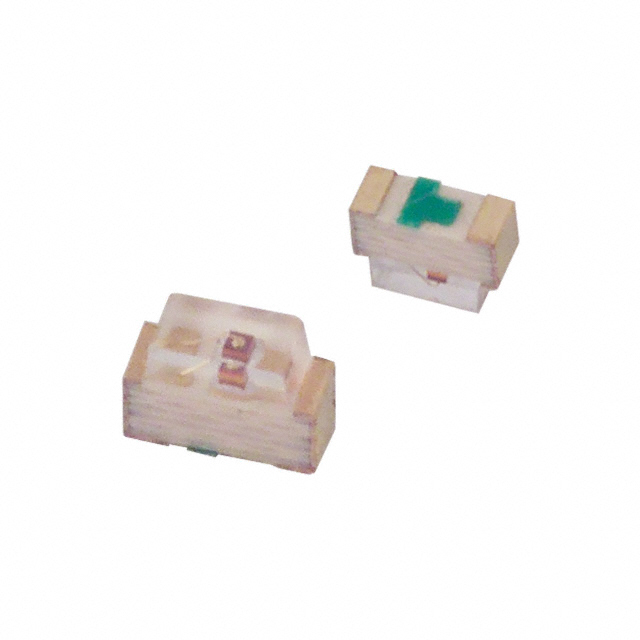

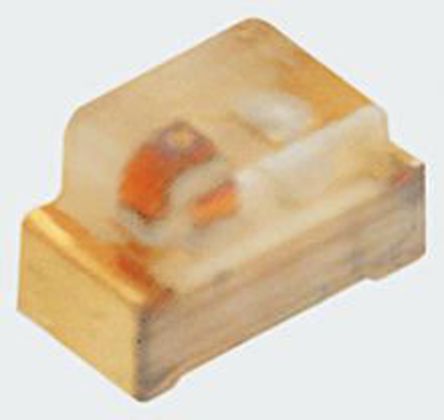

Lite-On 0603 Package Side View Chip LEDsThis range of LEDs, from Lite-On, are in the standard 0603 side looking package. There are a variety of colour options available and they come with a clear lens type. Dimensions: 1.6 x 0.6 mm 0603 side view package Viewing angle: 130° ### 可见光 LED,Lite-On
Lite-On 0603 Package Side View Chip s
This range of LEDs, from Lite-On, are in the standard 0603 side looking package. There are a variety of colour options available and they come with a clear lens type.
Dimensions: 1.6 x 0.6 mm
0603 side view package
Viewing angle: 130°
### 可见光 LED,Lite-On
得捷:
LED GREEN CLEAR SMD R/A
立创商城:
普绿/黄绿 569nm 侧贴
欧时:
Lite-On 绿色 LED LTST-S270GKT, 12 mcd, 2.6 V, 130 °视角, 2 引脚 1608 0603 侧视 贴装
艾睿:
LED Low-Power Uni-Color Green 565nm 2.1V 2-Pin Chip LED T/R
富昌:
Green 1.6 x 0.6 x 1.15 mm 130° Water Clear 12 mcd 2.1 V Molded SMT LED
TME:
LED; SMD; 0604; green; 2.5-20mcd; 1.6x1.15x0.6mm; 130°; 2.1÷2.6V
Verical:
LED Low-Power Uni-Color Green 565nm 2.1V 2-Pin Chip LED T/R
工作电压 2.1V ~ 2.6V
额定功率 75 mW
针脚数 2
正向电压 2.1 V

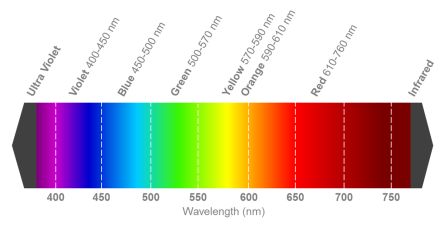

波长 569 nm
发光强度 12 mcd
视角 130°
透镜样式 Non-Diffused
峰值波长 565 nm
耗散功率 75 W
测试电流 20 mA
正向电流 30 mA
正向电压Max 2.6 V
正向电流Max 30 mA
工作温度Max 85 ℃
工作温度Min -30 ℃
耗散功率Max 100 mW
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 1.15 mm
高度 0.60 mm
封装公制 1608
封装 0603
颜色 Green
产品生命周期 Active

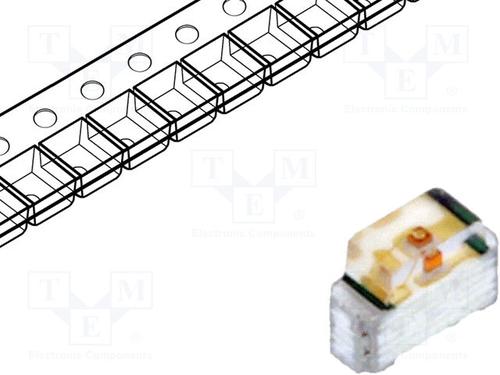

包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTST-S270GKT LiteOn 光宝 | 当前型号 | 当前型号 |
HSMG-C120 安华高科 | 功能相似 | LTST-S270GKT和HSMG-C120的区别 |
