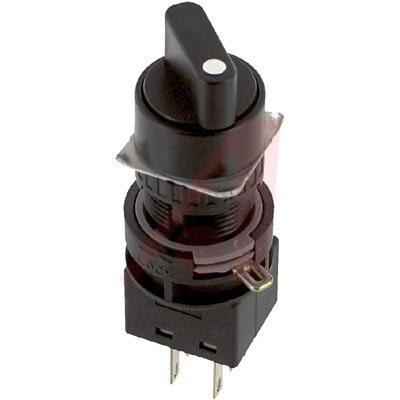

Switch Selector N.O./N.C. DPDT 90° Knob 5A 250VAC 125VDC Solder Tab 250000Cycles Panel Mount
Selector Switches, DPDT Switch Type, 24 VDC⁄120 VAC Voltage Rating
** General Specifications. Contact Ratings:** DPDT, snap action. Max. Carry Current: 5 A. ** Max. Insulation Voltage:** 250 VAC/VDC. ** Operational Breaking Currents:** AC inductive load — 2 A @ 120 V, 1.5 A @ 240 V; DC resistive load — 2 A @ 30 V, 0.4 A @ 125 V. ** Termination:** 0.110" solder/quick connect. ** Degree of Protection:** NEMA 4X/IP65. ** Mechanical Life. Momentary Pushbuttons:** 2,000,000 operations. ** All others:** 250,000 operations. ** Electrical Life:** 100,000 operations at full rated load. ** LED Lamp Ratings:** 24 VAC/VDC @ 8 mA. ** Mounting:** 16 mm mounting hole
Available assembled or as sub-components. Worldwide approvals. Incandescent or LED illumination. Snap action contacts.
