LDA75F-12-SN

AC-DC Power Supply Single-OUT 12V 6.3A 75.6W 13Pin

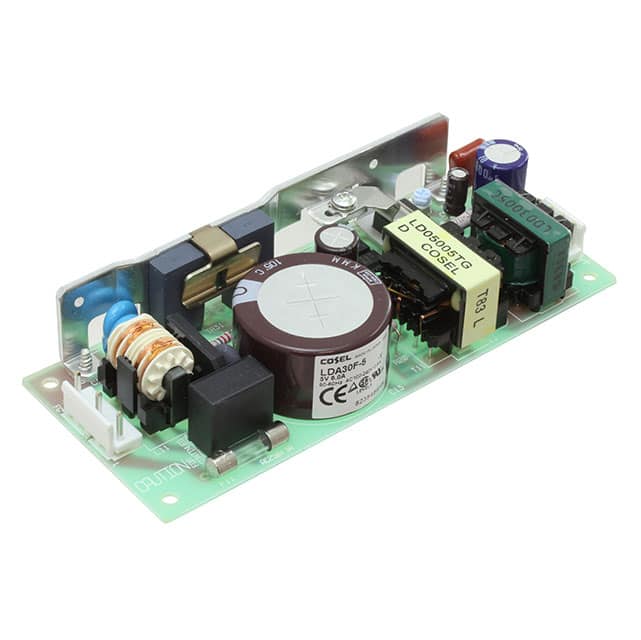

PC board type power supply of global input input voltage 62 models in 8 wattage range from 10-300w with 3-48V. Some models have peak output power.

* Features

* Rugged PCB type CEM3

* Input range

LDA10 - 75F AC85 - 264V

LDA100 - 300W AC85 - 132V/AC170 - 264V

Autoranging input

* Built-in inrush current limiting, overcurrent and overvoltage protection circuits

* Optional parts

Chassis and cover,Harness

* Safety agency approvals

* UL recognized, TÜV approved, CSA certified LDA10F - LDA150W

* UL60950-1, C-UL recognized, TÜV approved

* Complies with DEN-AN

* CE marking

* Low Voltage Directive

* Environment

* RoHS directive

* EMI

* Complies with FCC-B, CISPR22-B, EN55022-B, VCCI-B

* 2-year warranty
