LSCB1000 - Red Lion Controls Mounting Hardware For Length Sensors - Conversion Bracket

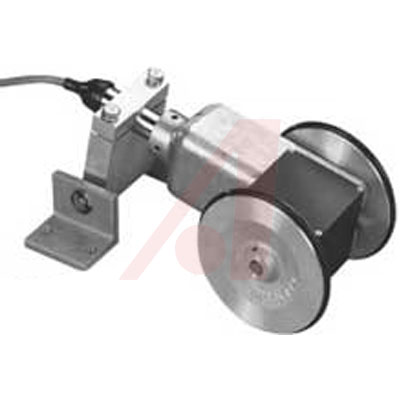

This conversion bracket allows you to assemble a custom length sensor by purchasing the following items separately:

1\. Length Sensor Conversion Bracket P/N

2\. ZBG or ZBH with appropriate PPR and Single Channel or Quadrature

Output.

3\. One or two measuring wheels. Install OF & OK measuring wheels with set

screw hub facing ZBG shaft as shown. Apply thread locking material to wheel

set screw threads during installation to ZBG or ZBH shaft.

4\. Hinge Clamp Assembly P/N LSAHC001

Adapts to RBGB to length measurement; includes mounting screws.
