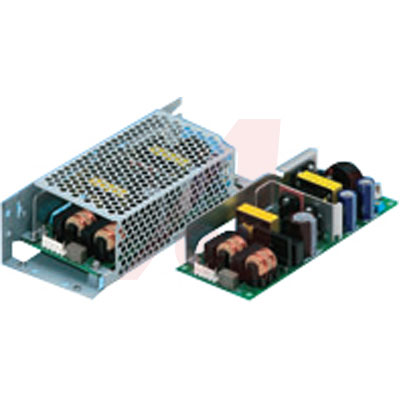

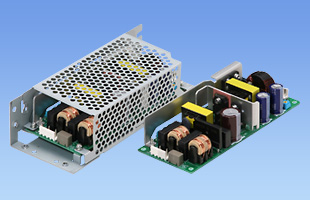

Power Supply; AC-DC; 12V; 8.5A; 85-264V In; Open Frame; Panel Mnt; PFC; 102W; LFA Series
**Designed for Compact Space Limited Applications - Hi Reliabllity at Value Price**
**Features:
** Super Compact 38% Less Volume Than "s LDA Series
Hi Reliability — Field Failure Rate Less Than 0.01%
Outstanding Cosel Quality and Workmanship
Power Factor Correction 0.9 Typical 50, 75, 100, 150, 240, 300 Watt
Universial Input 85 — 264 VAC — Complies with IEC61000-3-2
High Efficiency Via Synchronous Rectification
Convection Cooling - 10-300 Watt, Full 300 Watts 24, 36, 48 V. 5, 12, 15 V 200 Watts Convection
Built in Inrush, Overcurrent, Overvoltage Protection
Fully Regulated, Fully Isolated Input/Output
Conductive Noice — Complies with FCCB , VCCI-B, CISPR-B, EN55011-B, EN55022-B
UL60950-1, C-UL CSA60950-1, EN60950-1, EN50178 TUV and CE APPROVALS
Options, SN-Chassis and Cover Y Potentiometer - Contact Your Local Allied Sales Representive
