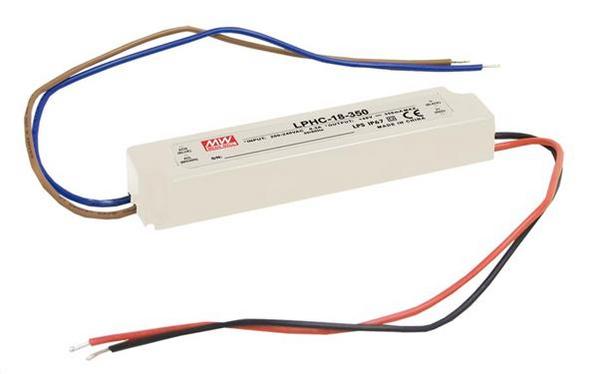

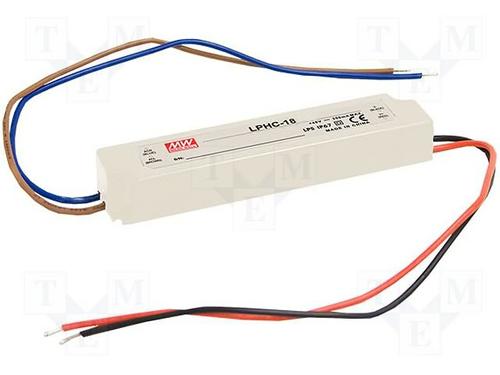

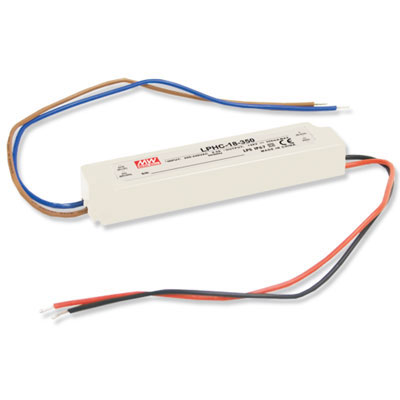

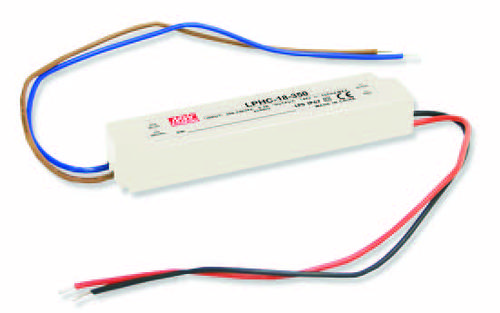

MEAN WELL LPHC-18-700 交流/直流发光二极管电源, II级, LPHC-18系列, 180 V, 264 V, 17.5 W, 700 mA, 25 V
The is a 25V/17.5W 1-output Switching Power Supply, fully encapsulated with IP67 level, cooling by free air convection. Suitable for lighting and moving sign application and it is highly reliability. Constant current mode power supply.
- .
- Class-II power unit
- .
- Pass LPS
- .
- 100% Full load burn test
- .
- 3% Load regulation
- .
- 1% Line regulation
- .
- Short-circuit protection
- .
- Overvoltage protection
- .
- Over-temperature protection
额定功率 17.5 W
输出接口数 1
输出电压 6.25 VDC
输出电流 700 mA
通道数 1
输出功率 17.5 W
输入电压Max 264 V
输入电压Min 180 V
输入电压DC Max 370 V
输入电压DC Min 254 v
输入电压AC Max 264 v
输入电压AC Min 180 v
输出电压Max 25 V
输出电压Min 6 V
输出电流Max 700 mA
输入电流Min 0.3 A
输出功率Max 17.5 W
工作温度Max 70 ℃
工作温度Min -30 ℃
电源电压 254.370VDC, 180.264VAC
输入电压 180VAC ~ 264VAC
引脚数 4
封装 Plastic Enclosure
长度 140 mm
宽度 30 mm
高度 22 mm
封装 Plastic Enclosure
重量 175 g
工作温度 -30℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 Power Management, LED Lighting, 电源管理, 发光二极管照明
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409510
