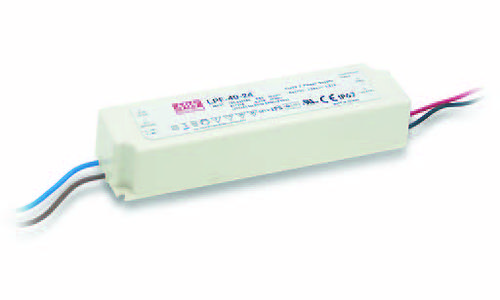

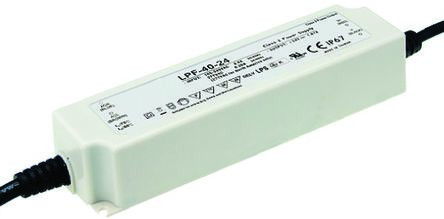

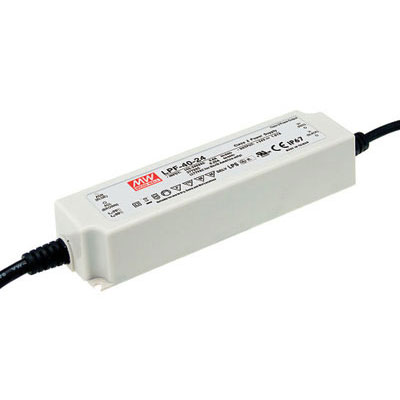

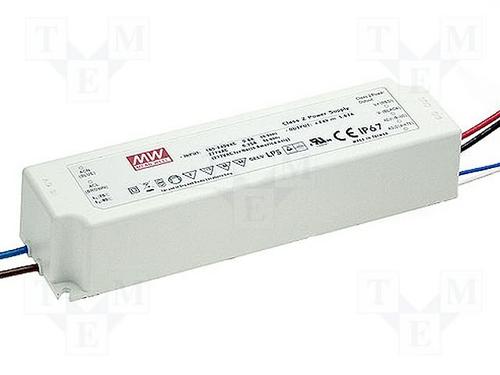

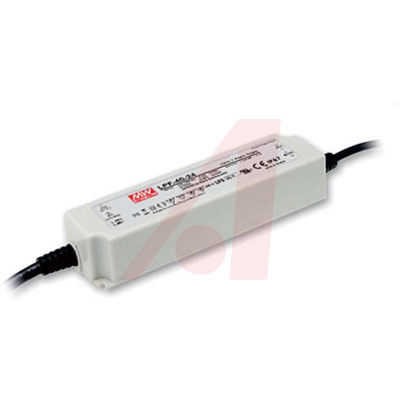

LPF-40 系列 40 W 1.12 A 36 V 输出 可调光 开关电源
1.12A 21.6 ~ 36V 恒定电流,电压 LED 驱动器 AC DC 转换器 拓扑 输出
欧时:
LED Driver 36V, Power Supply, IP67, 40W
得捷:
LED DVR CCCV ACDC 21.6-36V 1.12A
贸泽:
LED电源 40.32W 36V 1.12A LED PS W/PFC
艾睿:
Ensure optimal performance of your electronic device with the use of this LPF-40-36 AC to DC power supply from Mean-Well USA, Inc.. It has a voltage of 36 V and maximum output power of 40.32 W. This part&s;s single output can handle a current up to 1.12 A. This part has a minimum operating temperature of -30 °C and a maximum of 50 °C.
Allied Electronics:
Power Supply; AC-DC; 36V; 1.12A; 100-305V In; Enclosed; PFC; LED Driver; LPF-40 Series
Jameco:
36VDC 1120mA 40W Class 2 Switching LED Power Supply IP67 Encapsulated
安富利:
LED DRVR Module 1-CH IP67 36V 1.12A
TME:
Pwr sup.unit: switched-mode; LED; 40.32W; 36VDC; 1.12A; 90÷305VAC
MASTER:
AC/DC LED Power Supply - Const Curr/Volt - 40.32W - Fixed:36 Vdc @ 1,120mA - Dim: No
Online Components:
AC/DC LED Power Supply 40.32W Single 4-Pin , Cannot use w/AC Wall Dimmer
Electro Sonic:
AC/DC LED Power Supply - Const Curr/Volt - 40.32W - Fixed:36 Vdc @ 1,120mA - Dim: No
CDI:
LED Driver CC, CV 40W 1.12A Linear 21.6-36Vdc 90-305Vac PFC Non-Dimming IP67 Plastic Enclosure
额定功率 40.32 W
输出接口数 1
输出电压 36 VDC
输出电流 1.12 A
通道数 1
输入电流 0.6 A
输出功率 40.32 W
输入电压DC Max 431 V
输入电压DC Min 127 v
输入电压AC Max 305 v
输入电压AC Min 90 v
输出电压Max 36 V
输出电压Min 21.6 V
输出电流Max 1120 mA
输入电流Min 0.6 A
输出功率Max 40.32 W
工作温度Max 80 ℃
工作温度Min -40 ℃
电源电压 90.305VAC, 127.431VDC
输入电压 90VAC ~ 305VAC, 127VDC ~ 431VDC
引脚数 4
封装 Plastic Enclosure
长度 162.5 mm
宽度 42.5 mm
高度 32 mm
封装 Plastic Enclosure
重量 440 g
工作温度 -40℃ ~ 80℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409510
