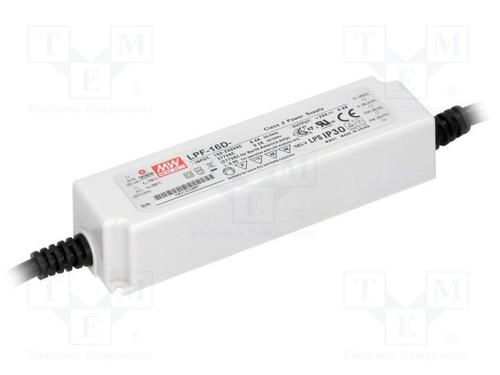

LED Driver CC, CV 16W 0.3A Linear 29.7-54VDC 90-305VAC PFC PWM, Resistance, 1-10V Dimming IP30 Plastic Enclosure
Universal AC input / Full range up to 305 VAC
Short circuit, over current, over voltage and over tmeperatue protections
built-in active PFC function
Cooling by free air convection
Fully isolated plastic case with IP30 level
Class II power unit, no FG
Class 2 power unit
IP67 optional, model NO.:LPF-16D-12P
Built-in 3-in-1 dimming function 1-10 Vdc or PWM signal or resistance
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
Suitable for dry / damp location wet location for LPF-16D-12P
5 years warranty
额定功率 16.2 W
输出接口数 1
输出电压 54 VDC
输出电流 0.3 A
通道数 1
输出功率 16.2 W
输入电压DC Max 431 V
输入电压DC Min 127 v
输入电压AC Max 305 v
输入电压AC Min 90 v
输出电压Max 54 V
输出电压Min 29.7 V
输出电流Max 300 mA
输入电流Min 0.4 A
输出功率Max 16.2 W
工作温度Max 70 ℃
工作温度Min -35 ℃
电源电压 90.305VAC, 127.431VDC
输入电压 127VDC ~ 431VDC, 90VAC ~ 305VAC
安装方式 Chassis
引脚数 6
封装 Plastic Enclosure
封装 Plastic Enclosure
重量 210 g
工作温度 -35℃ ~ 70℃
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
