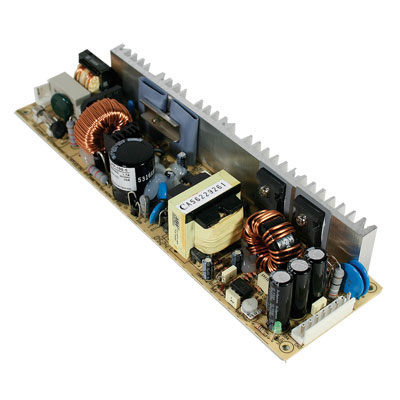

AC-DC Power Supply Single-OUT 12V 8.5A 102W 11Pin
With this AC to DC power supply from Mean-Well USA, Inc. your electronic device will be able to operate by using direct current instead of alternating current. It has a voltage of 12 V and maximum output power of 102 W. This part"s single output can handle a current up to 8.5 A. This part has a minimum operating temperature of -10 °C and a maximum of 60 °C.
艾睿:
AC/DC Power Supply Single-OUT 12V 8.5A 102W 11-Pin
Jameco:
AC to DC Power Supply Open Frame Single Output 12 Volt 8.5 Amp 102 Watt
安富利:
AC/DC Power Supply Single-OUT 12V 8.5A 102W
TME:
Pwr sup.unit: switched-mode; 102W; 120÷370VDC; 90÷264VAC; 12VDC
MASTER:
AC/DC Power Supply - 1 Output - 12V@8.5A - 102W
Electro Sonic:
AC/DC Power Supply - 1 Output - 12V@8.5A - 102W
CDI:
AC/DC 100W 12V Single Output Power Supply, Open Frame
额定功率 102 W
输出接口数 1
输出电压 12 V
输出电流 8.5 A
输出功率 102 W
输入电压DC Max 370 V
输入电压DC Min 120 V
输入电压AC Max 264 V
输入电压AC Min 85 V
额定电流Max 1.7 A
输出电流Max 8.5 A
输入电流Min 1.7 A
输出功率Max 102 W
工作温度Max 60 ℃
工作温度Min -10 ℃
电源电压 120.370VDC, 90.264VAC
安装方式 Chassis
引脚数 11
长度 8.74 in
宽度 2.44 in
高度 1.32 in
重量 510 g
工作温度 -10℃ ~ 60℃
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409520
