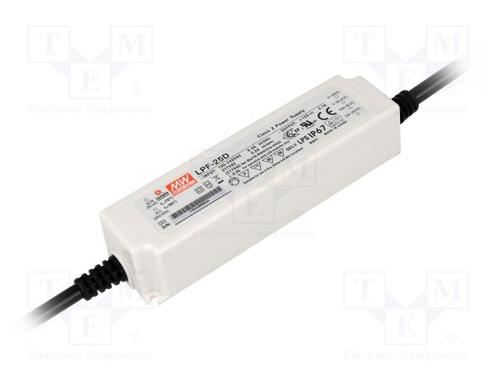

LED电源 25.2W 30V 0.84A Dimming LED PS IP67
840mA 16.5 ~ 30V 恒定电流 LED 驱动器 AC DC 转换器 拓扑 输出
得捷:
LED DRVR CC AC/DC 16.5-30V 840MA
贸泽:
LED电源 25.2W 30V 0.84A Dimming LED PS IP67
艾睿:
AC/DC Power Supply Single-OUT 30V 0.84A 25.2W
Jameco:
30VDC 840mA 25W Class 2 Switching LED Power Supply IP67 Encapsulated with 3 in 1 Dimming
安富利:
LED DRVR Module 1-CH IP67 30V 0.84A
富昌:
25 W Single Output 0.84 A 30 Vdc Output Max Dimmable Switching Power Supply
Chip1Stop:
AC/DC LED Power Supply 25.2W Single 6-Pin
TME:
Pwr sup.unit: switched-mode; LED; 25.2W; 30VDC; 16.5÷30VDC; 0.84A
Electro Sonic:
AC/DC LED Pwr Sply - Const Curr/Volt - 25.2W - Fixd:30 Vdc @ 840mA - Dim: 1-10Vdc/PWM/Resist
CDI:
LED Driver CC, CV 25W 0.84A Linear 16.5-30Vdc 90-305Vac PFC PWM, Resistance, 1-10V Dimming IP67 Plastic Enclosure
额定功率 25 W
输出接口数 1
输出电压 30 VDC
输出电流 0.84 A
通道数 1
输出功率 25.2 W
隔离电压 3.75 kV
输入电压Max 305 VAC
输入电压Min 90 VAC
输入电压DC Max 431 V
输入电压DC Min 127 v
输入电压AC Max 305 v
输入电压AC Min 90 v
输出电压Max 30 V
输出电压Min 16.5 V
输出电流Max 840 mA
输出电流Min 0 A
输入电流Min 0.4 A
输出功率Max 25.2 W
工作温度Max 70 ℃
工作温度Min -35 ℃
电源电压 90.305VAC, 127.431VDC
输入电压 90VAC ~ 305VAC, 127VDC ~ 431VDC
安装方式 Chassis
引脚数 6
封装 Plastic Enclosure
长度 148 mm
宽度 40 mm
高度 32 mm
封装 Plastic Enclosure
重量 360 g
工作温度 -35℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
