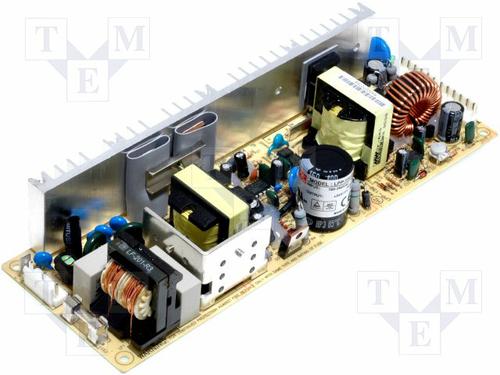

LPP-150-24

LPP-150-24图片1
LPP-150-24图片2
LPP-150-24图片3
LPP-150-24图片4
LPP-150-24图片5
LPP-150-24图片6
LPP-150-24图片7
LPP-150-24图片8
LPP-150-24图片9
LPP-150-24图片10
LPP-150-24图片11
LPP-150-24图片12
LPP-150-24图片13
LPP-150-24概述

AC-DC Power Supply Single-OUT 24V 6.3A 151.2W 15Pin

With this AC to DC power supply from Mean-Well USA, Inc. your electronic device will be able to operate by using direct current instead of alternating current. It has a voltage of 24 V and maximum output power of 151.2 W. This part"s single output can handle a current up to 6.3 A. This part has a temperature range of -10 °C to 60 °C.


得捷:
AC/DC CONVERTER 24V 151W


贸泽:
Switching Power Supplies 150W 24V 6.3A With PFC Function


艾睿:
AC/DC Power Supply Single-OUT 24V 6.3A 151.2W 15-Pin


Jameco:
AC to DC Power Supply Open Frame Single Output 24 Volt 6.3 Amp 150 Watt


安富利:
AC/DC Power Supply Single-OUT 24V 6.3A 151.2W


Chip1Stop:
AC/DC Power Supply Single-OUT 24V 6.3A 151.2W 13-Pin


TME:
Pwr sup.unit: switched-mode; 151.2W; 120÷370VDC; 90÷264VAC; 24VDC


MASTER:
AC-DC Single output Open frame power supply with PFC; Output 24Vdc at 6.3A


Electro Sonic:
AC-DC Single output Open frame power supply with PFC; Output 24Vdc at 6.3A


CDI:
AC/DC 150W 24V Single Output Power Supply, Open Frame


LPP-150-24中文资料参数规格
技术参数

额定功率 151.2 W

输出接口数 1

输入电压DC 120V ~ 370V

输出电压 24 V

输出电流 6.3 A

输出功率 151.2 W

输入电压DC Max 370 V

输入电压DC Min 120 V

输入电压AC Max 264 V

输入电压AC Min 85 V

额定电流Max 2.5 A

输出电流Max 6.3 A

输入电流Min 2.5 A

输出功率Max 151.2 W

工作温度Max 60 ℃

工作温度Min -10 ℃

电源电压 120.370VDC, 90.264VAC

输入电压 85V ~ 264V

封装参数

安装方式 Chassis

引脚数 15

外形尺寸

长度 222 mm

宽度 75 mm

高度 41 mm

物理参数

重量 620 g

工作温度 -10℃ ~ 60℃

其他

产品生命周期 Unknown

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8504409530

数据手册

在线购买LPP-150-24
型号: LPP-150-24
制造商: Mean Well 台湾明纬
描述:AC-DC Power Supply Single-OUT 24V 6.3A 151.2W 15Pin
