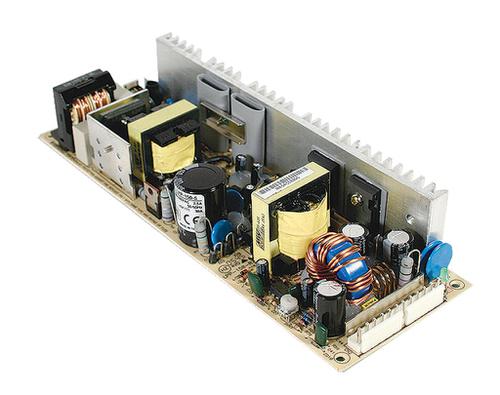

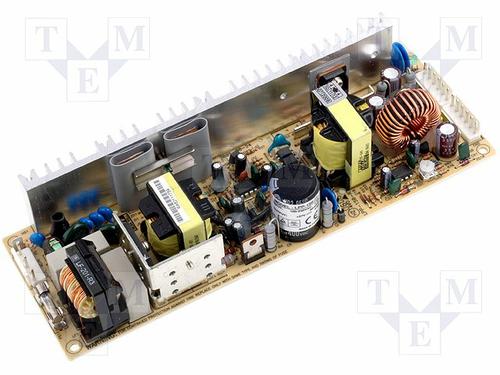

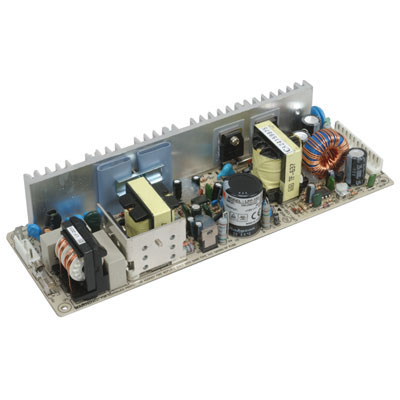

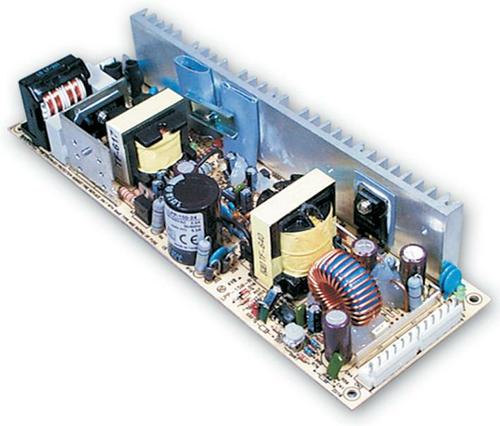

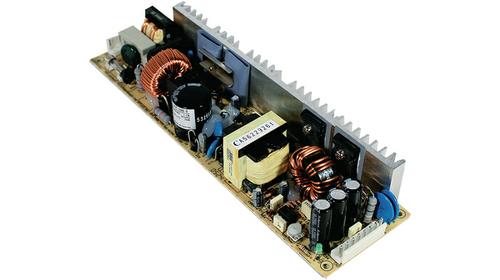

AC-DC Power Supply Single-OUT 27V 5.6A 151.2W 15Pin
Your electronic devices will need this AC to DC power supply from Mean-Well USA, Inc. to convert alternating currents into useful direct currents to operate. It has a voltage of 27 V and maximum output power of 151.2 W. This part"s single output can handle a current up to 5.6 A. This part has a minimum operating temperature of -10 °C and a maximum of 60 °C.
得捷:
AC/DC CONVERTER 27V 151W
艾睿:
Your electronic devices will need this LPP-150-27 AC to DC power supply from Mean-Well USA, Inc. to convert alternating currents into useful direct currents to operate. It has a voltage of 27 V and maximum output power of 151.2 W. This part&s;s single output can handle a current up to 5.6 A. This part has a minimum operating temperature of -10 °C and a maximum of 60 °C.
Jameco:
AC to DC Power Supply Open Frame Single Output 27 Volt 5.6 Amp 151.2 Watt
安富利:
AC/DC Power Supply Single-OUT 27V 5.6A 151.2W
Chip1Stop:
AC/DC Power Supply Single-OUT 27V 5.6A 151.2W 15-Pin
TME:
Pwr sup.unit: switched-mode; 151.2W; 120÷370VDC; 90÷264VAC; 27VDC
MASTER:
AC/DC Single output Open frame power supply with PFC - Output 27VDC at 5.6A - 150W.
Electro Sonic:
AC/DC Single output Open frame power supply with PFC - Output 27VDC at 5.6A - 150W.
CDI:
AC/DC 150W 27V Single Output Power Supply, Open Frame
额定功率 151.2 W
输出接口数 1
输出电压 27 V
输出电流 5.6 A
输出功率 151.2 W
输入电压DC Max 370 V
输入电压DC Min 120 V
输入电压AC Max 264 V
输入电压AC Min 85 V
额定电流Max 2.5 A
输出电流Max 5.6 A
输入电流Min 2.5 A
输出功率Max 151.2 W
工作温度Max 60 ℃
工作温度Min -10 ℃
电源电压 120.370VDC, 90.264VAC
输入电压 85V ~ 264V
安装方式 Chassis
引脚数 15
长度 8.74 in
宽度 2.95 in
高度 1.61 in
重量 620 g
工作温度 -10℃ ~ 60℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409530
