LGP47K-G2J1-24

OSRAM  LGP47K-G2J1-24  发光二极管, 超级 PointLED®, 绿色, SMD, 2mm, 2 mA, 1.8 V, 570 nm

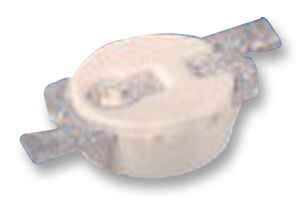

The is a Hyper Point® SMD LED with round-shaped lens. The PointLED® is one of the smallest packages in its class and achieves high luminous efficacies. Due to its round and flat package, measuring only 0.775mm high, it is ideal for application where space is a sensitive issue. It is suitable for coupling into light guides, dashboard backlighting, backlighting and optical indicator.

.

InGaAlP technology

.

Improved corrosion robustness

.

125°C Junction temperature

.

12V Reverse voltage

.

Up to 2kV ESD withstand voltage
