LCR仪表, 台式, 5 MHz, 100 kH, 1 F, 100 Mohm, LCR-8000G Series

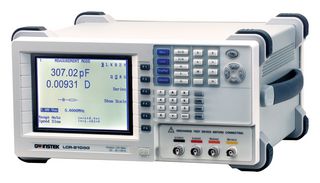

The from is a LCR-8000G series 5MHz high precision LCR meter. It provides accuracy, versatility and high resolution for a wide range of component measurements, even including DC resistance measurement and voltage/current monitoring. The multi step function allows on-screen programming of customized measurement sequence with pass/fail indication. Each program includes 30 test steps and each test step can be set with selected parameters and test limits. Under multi step operation, a tedious work routine can be done step by step automatically just at a press of a button. With graph mode, LCR-8105G display the component impedance response either over a wide range of test frequency sweep or over a wide range of test voltage sweep in a graph chart. It measures 0.1nH to 100KH inductance, 0.01pF to 1F capacitance, 0.00001 to 9.9999 dissipation factor, 0.1 to 9999.9 quality factor, 10ns to 1000s admittance/conductance/susceptance and -180° to +180° phase angle.
- .
- 0.1% basic accuracy and 6 digits measurement resolution
- .
- 320 x 240 dot matrix LCD display with intuitive interface
- .
- Full measuring functions with DUT V/I monitor, 100 ohm input impedance
- .
- PASS/FAIL function abs, % or delta with judgment alarm
- .
- DC resistance measurement, multiple step mode, standard RS-232C/GPIB interface
- .
- 0.1mohm to 100Mohm resistance/impedance/reactance measurement range
- .
- AC 115V+10% / -25%, 230V+15% / -14% selectable, 50/60Hz power source
- .
- 330mm W x 170mm H x 340mm D dimension and 5Kg weight
- .
- Measurement in absolute value or percentage difference from the nominal value
- .
- Graph mode for visual representation of measurement data
