DC/DC控制器,同步 降压-升压, 2.8 V至80 V, 1输出, 400 kHz, QFN-38
The from is an 80V, VIN and VOUT synchronous 4-switch buck-boost DC to DC controller in 38 pin QFN package. It is a high performance buck-boost switching regulator controller operates from input voltages above, below or equal to the output voltage. It has integrated input current, input voltage, output current and output voltage feedback loops. With a wide 2.8V to 80V input and 1.3V to 80V output range, the LT8705A is compatible with most solar, automotive, telecom and battery-powered systems. The LT8705A is an improved pin compatible version of the LT8705 and is recommended for new designs. The device includes a MODE pin to select among burst mode operation, discontinuous or continuous conduction mode at light loads. Additional features include a 3.3V/12mA LDO, a synchronizable fixed operating frequency and onboard gate drivers. It is used in high voltage buck-boost converters and input or output current limited converters.
电源电压DC 2.80V min
输出接口数 1
输出电压 1.3V ~ 80V
针脚数 38
开关频率 400 kHz
占空比 80 %
输入电压Max 80 V
输入电压Min 2.8 V
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 80 V
电源电压Min 2.8 V
安装方式 Surface Mount
引脚数 38

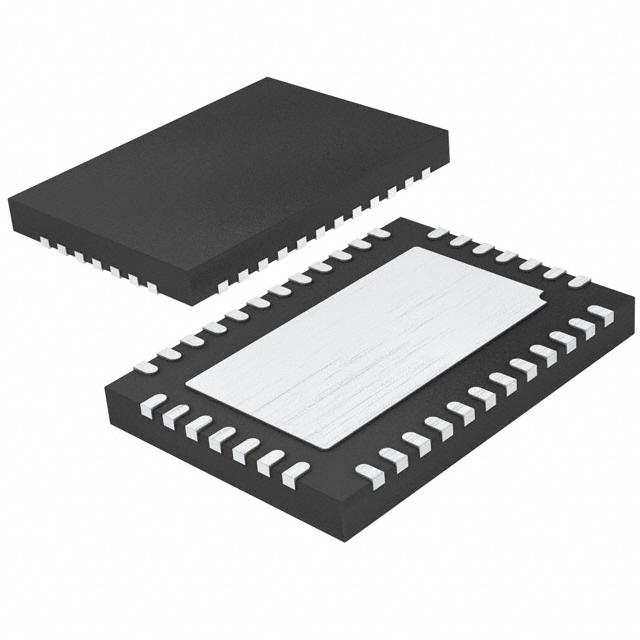

封装 QFN-38
封装 QFN-38
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Each
制造应用 电源管理, Power Management
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC版本 2015/12/17
